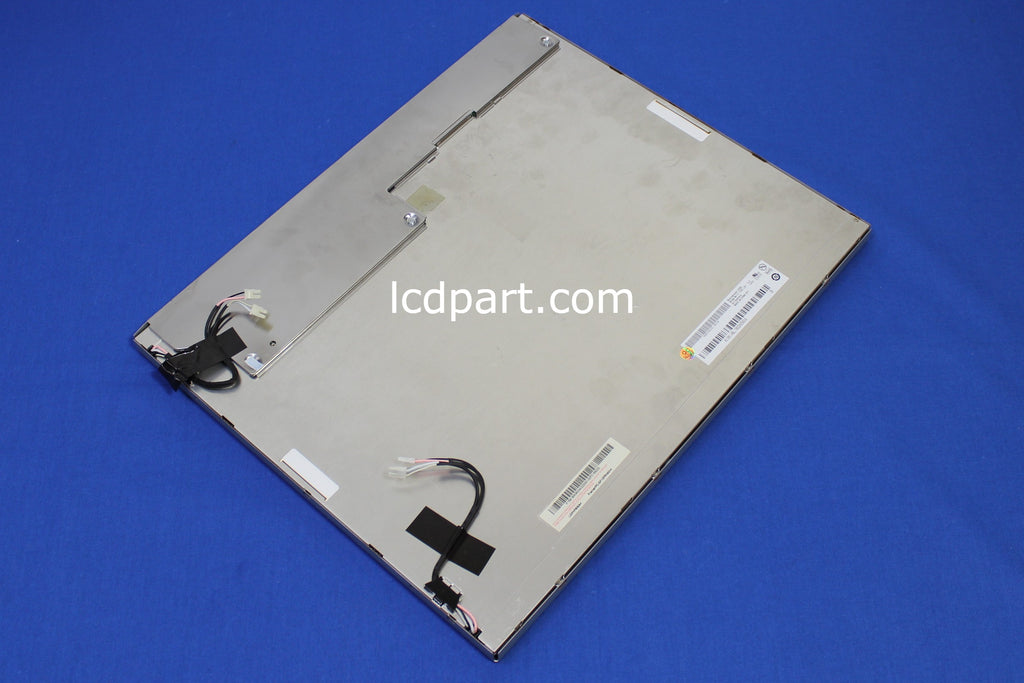

This refurbished AUO M190EG01-V0 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and tested. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty
AUO M190EG01-V0 , one of the most popular LCD panels in an industrial application. This 19 inch AUO M190EG01-V0 is originally equipped with quad CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB70395LED4821X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for AUO M190EG01-V0 is Listed below
|Native Resolution||1280 X 1024|
|Active Area||[mm]||376.32(H) X 301.056(V)|
|Outline dimension||[mm]||396(W) X 324(H) X 17.5(D)|
|Bolt Hole Dimension||[mm]||174 X 192|
|Input Voltage VDD||[Volt]||5V|
|Screen Wire Harness||FIX-30S-2LVDS|
|Electrical Interface||Dual channel LVDS (8-bit)|
|Backlight Inverter||Substitute MS30DI|
|Response time, Rising||msec||15|
|Response time, Falling||msec||5|
|Viewing Angle - Horizontal||degree||89|
|Viewing Angle - Vertical||degree||89|
|LCD controller kit||FIX-30S-2LVDS_1280X1024|
|LED Backlight kit||UB70395LED4821X2|
|Direct Replacement LCD||MS190RUBFIX30D1|
