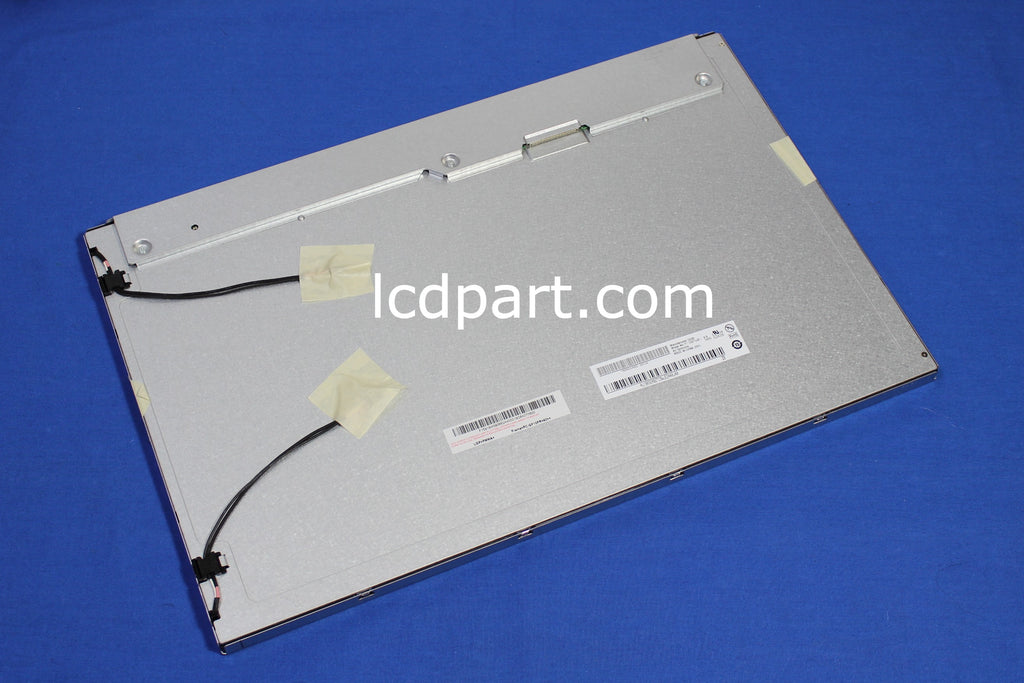

M190PW01-V6 19 inch AUO LCD Screen



New AUO M190PW01-V6 LCD Screen. 90 Days warranty.
AUO M190PW01-V6, one of the most popular LCD panels in an industrial application. This 10.4 inch AUO M190PW01-V6 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB60420LED5020X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for AUO M190PW01-V6 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 19
Native Resolution 1440 X 900
Active Area [mm] 408.24(H) X 255.15(V)
Outline dimension [mm] 428.0(W) X 278.0(H) X 16.5(D)
Bolt Hole Dimension [mm] 98 X 98
Input Voltage VDD [Volt] 5V
Screen Wire Harness FIX-30S-2LVDS
Electrical Interface Dual channel LVDS
White Luminance [cd/m2] 300
Contrast Ratio 800:1
BackLight Connector BHSR-02VS-1X2
Backlight Inverter Substitute MS668DI
Response time, Rising msec 3.6
Response time, Falling msec 1.4
Viewing Angle - Horizontal degree 170
Viewing Angle - Vertical degree 160
Compatible with MS190WBHSR02X2FIX30D2
LCD controller kit FIX-30S-2LVDS_1440X900
LED Backlight kit UB60420LED5020X2
Direct Replacement LCD MS190WUBFIX30D1
