Description

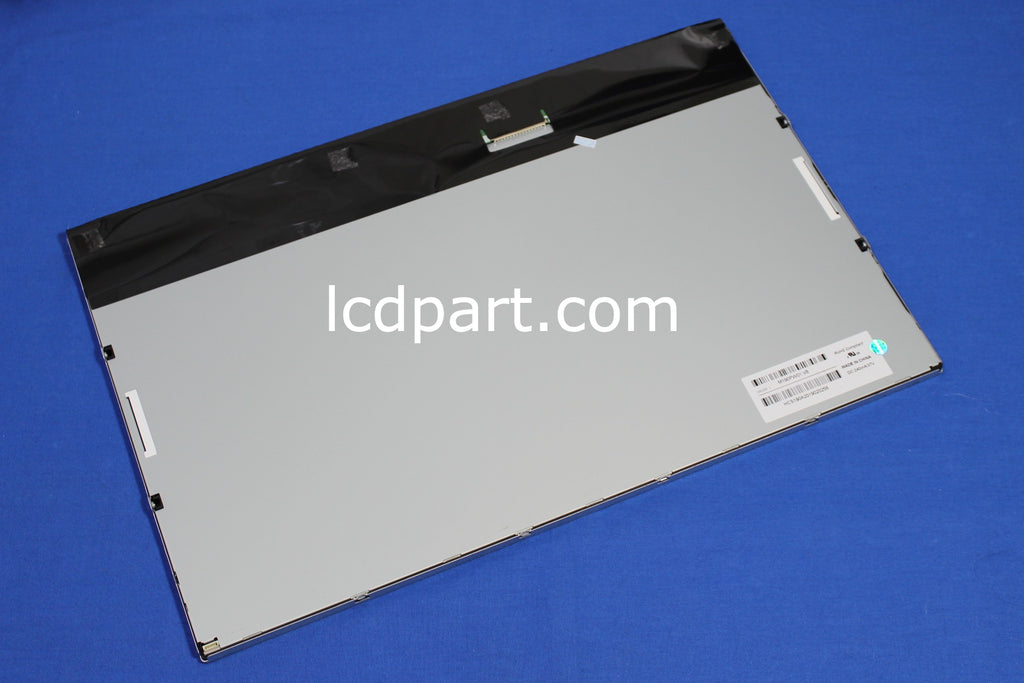

Refurbished (like new condition) AUO M190PW01-V8 LCD screen. 90 days warranty.
AUO M190PW01-V8 , one of the most popular LCD screen in an industrial control application. This 19 inch AUO M190PW01-V8 is originally equipped with LED backlight.
General Specifications:
| Item | Unit | Specifications |
| Screen Size | [inch] | 19 |
| Native Resolution | 1440 X 900 | |
| Active Area | [mm] | 408.24(H) X 255.15(V) |
| Outline dimension | [mm] | 428.0(W) X 278.0(H) X 10.3(D) |
| Bolt Hole Dimension | [mm] | 98 X 98 |
| Input Voltage VDD | [Volt] | 5V |
| Screen Wire Harness | FIX-30S-2LVDS | |
| Electrical Interface | Dual channel LVDS | |
| White Luminance | [cd/m2] | 250 |
| Contrast Ratio | 1000:1 | |
| Backlight Connector | H112K-P06N-01B 1.0MM, 6 PIN(MS570EXT) | |
| Backlight Inverter | 44.2V/60ma/4 strings, P1/P2/P5/P6=LED-, P3/P4=LED+ | |
| Response time, Rising | msec | 3.6 |
| Response time, Falling | msec | 1.4 |
| Viewing Angle - Horizontal | degree | 85 |
| Viewing Angle - Vertical | degree | 80 |
| LCD controller kit | FIX-30S-2LVDS_1440X900 |
