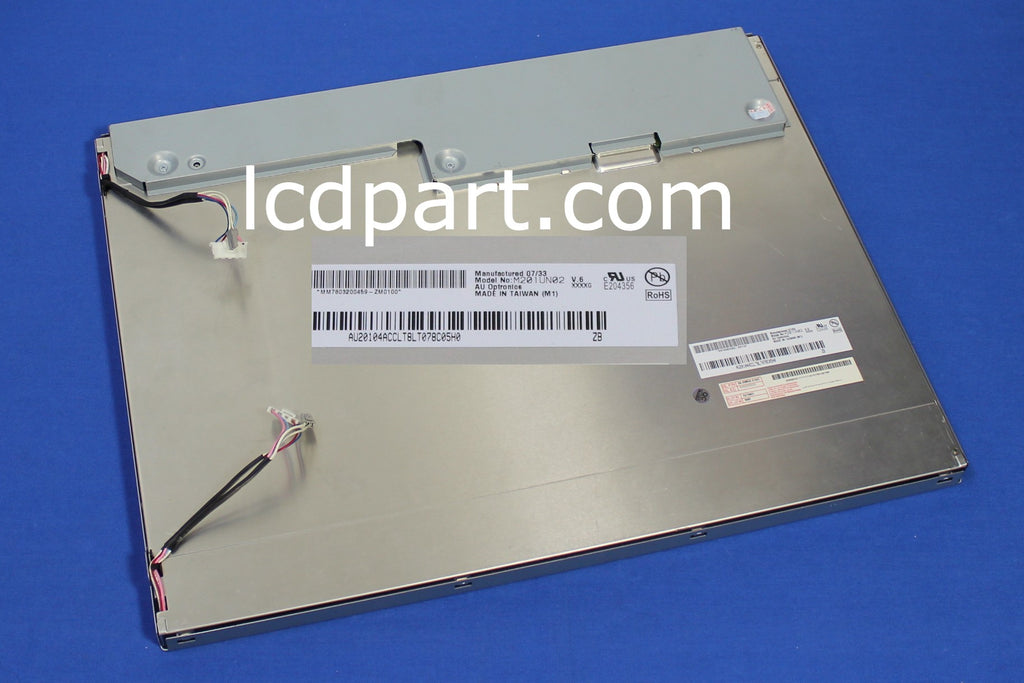

M201UN02-V6, 20.1 inch AUO LCD screen



This Refurbished AUO M201UN02-V6 screen comes with a 90 days warranty.
AUO M201UN02-V6, one of the most popular LCD panels in an industrial application. This 20.1 inch AUO M201UN02-V6 is originally equipped with 6 CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB60420LED5020X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for AUO M201UN02-V6 is Listed below
General Specifications:
Item Unit Specifications (Rack)
Screen Size [inch] 20.1
Native Resolution 1600 X 1200
Active Area [mm] 408.0(H) X 306.0(V)
Outline dimension [mm] 432(W) X 331.5(H) X 25(D)
Bolt Hole Dimension [mm] 274 X 220
Input Voltage VDD [Volt] 5V
Screen Wire Harness FIX-30S-2LVDS
Electrical Interface Dual channel LVDS
White Luminance [cd/m2] 300
Contrast Ratio 1000:1
BackLight Connector BHR-05VS-1X2, BHSR-02VS-1X2
Backlight Inverter Substitute MS175DI
Response time, Rising msec 11
Response time, Falling msec 5
Viewing Angle - Horizontal degree 89
Viewing Angle - Vertical degree 89
Compatible with M201UN02-V5
LCD controller kit FIX-30S-2LVDS_1600X1200
LED Backlight kit UB60420LED5020X2
