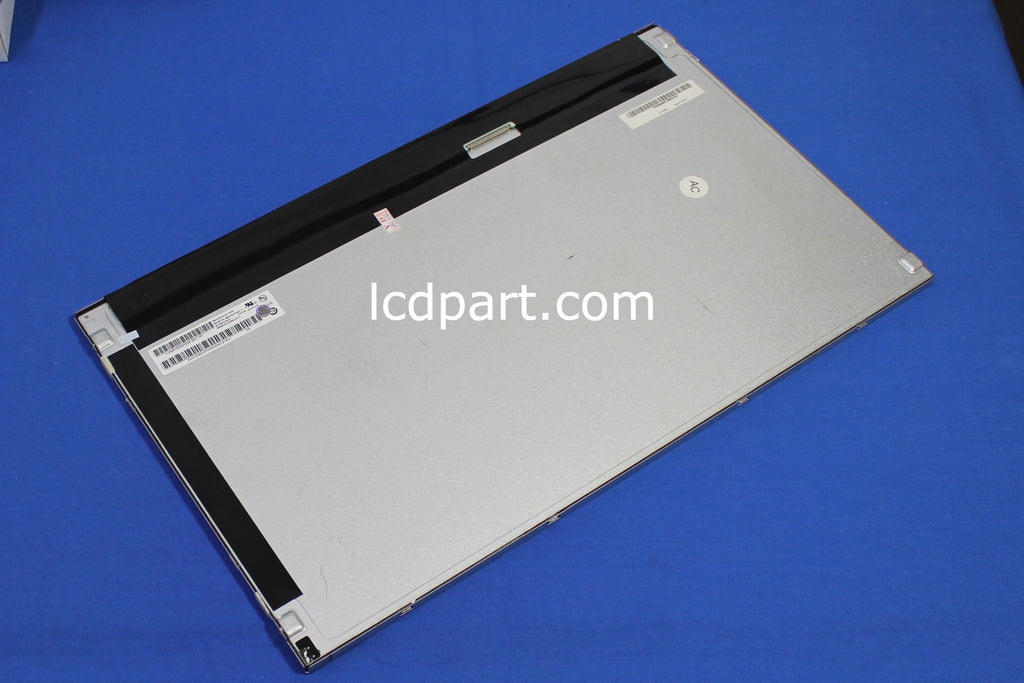

M215HTN01.1 21.5 inch AUO LCD Screen



This refurbished AUO M215HTN01.1 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
AUO M215HTN01.1, one of the most popular LCD screen in an industrial control and medical applications. This 21.5 inch AUO M215HTN01.1 is originally equipped with its manufacturer's LED back light strip and driver, which has typically 250 nits (based on its datasheet)
General Specifications:
Item Unit Specifications
Screen Size [inch] 21.5
Native Resolution 1920 X 1080
Active Area [mm] 476.64(H) X 268.11(V)
Outline dimension [mm] 495.6(W) X 292.2(H) X 10.3(D)
Bolt Hole Dimension [mm] 237 X 257
Input Voltage VDD [Volt] 5V
Screen Wire Harness FIX-30S-2LVDS
Electrical Interface Dual channel LVDS
White Luminance [cd/m2] 250
Contrast Ratio 1000:1
BackLight Connector H112K-P06N-00B, 1.0mm 6P(MS570EXT)
Backlight Inverter 38.4V/65ma/4 string, P1/P2/P5/P6=Cathode, P3/P4=Anode
Response time, Rising msec 3.8
Response time, Falling msec 1.2
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 85
