8.4 inch sunlight readable LCD kit, P/N: MS084RUBLCDKIT1400, 1400 nits


Input Source: VGA Only
Price:
$399.99

Description

MS084RUBLCD1000 Sunlight Readable LCD kit is designed to be used on outdoor environment. With our proprietary LED upgrade kit installed, It is so bright that the contents on display visible under strong sunlight (1400 nits). It is easy to install. Anyone can do it!
You also have an option to choose other type of controller board on right side:

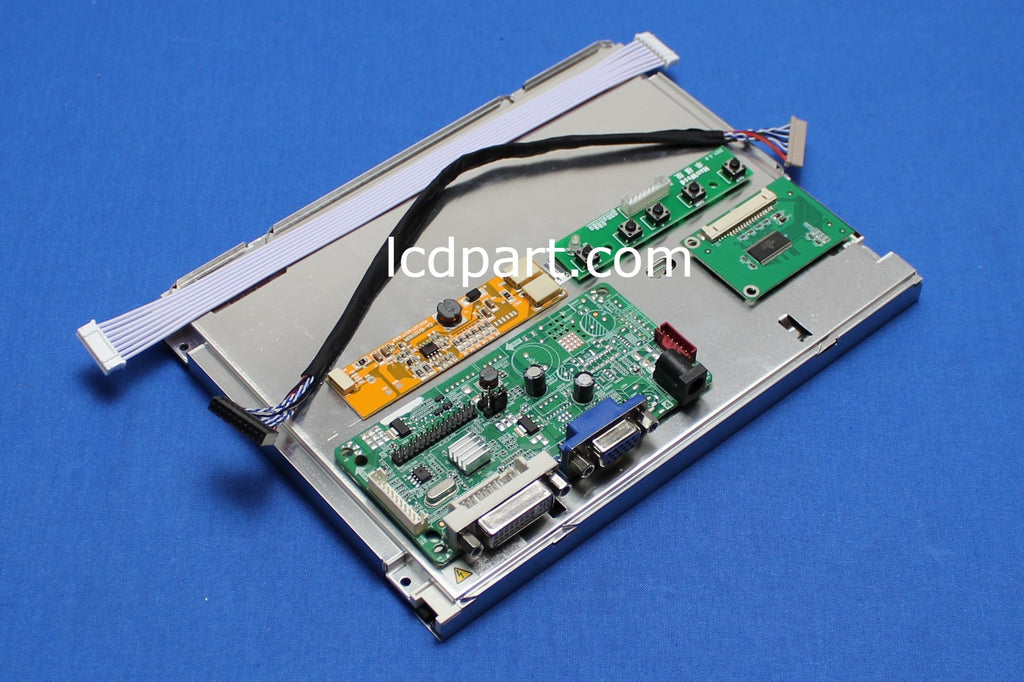

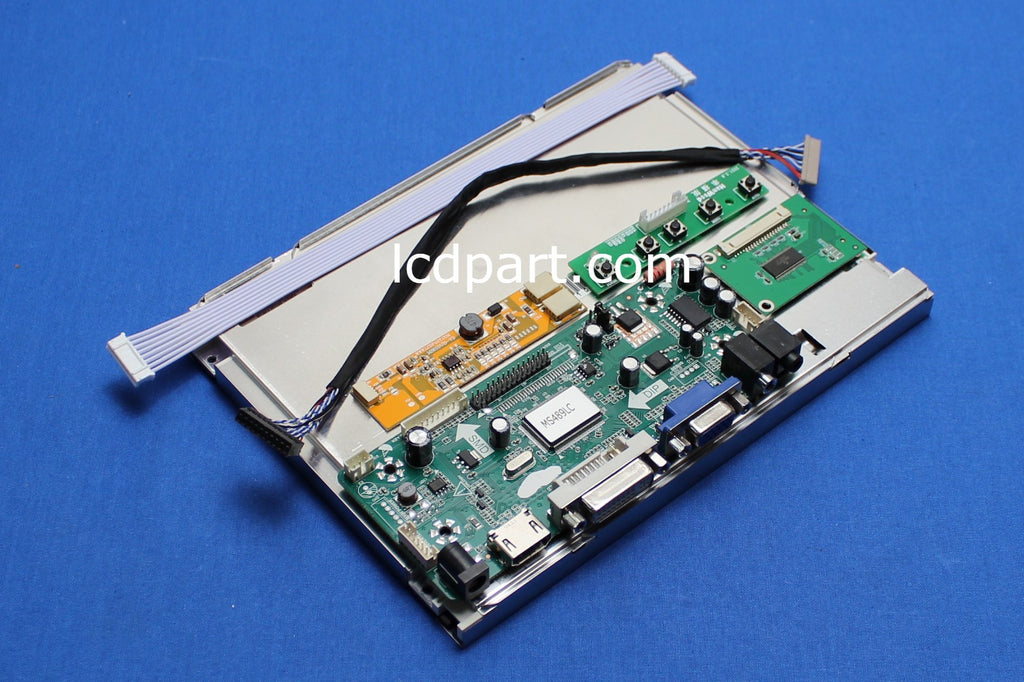

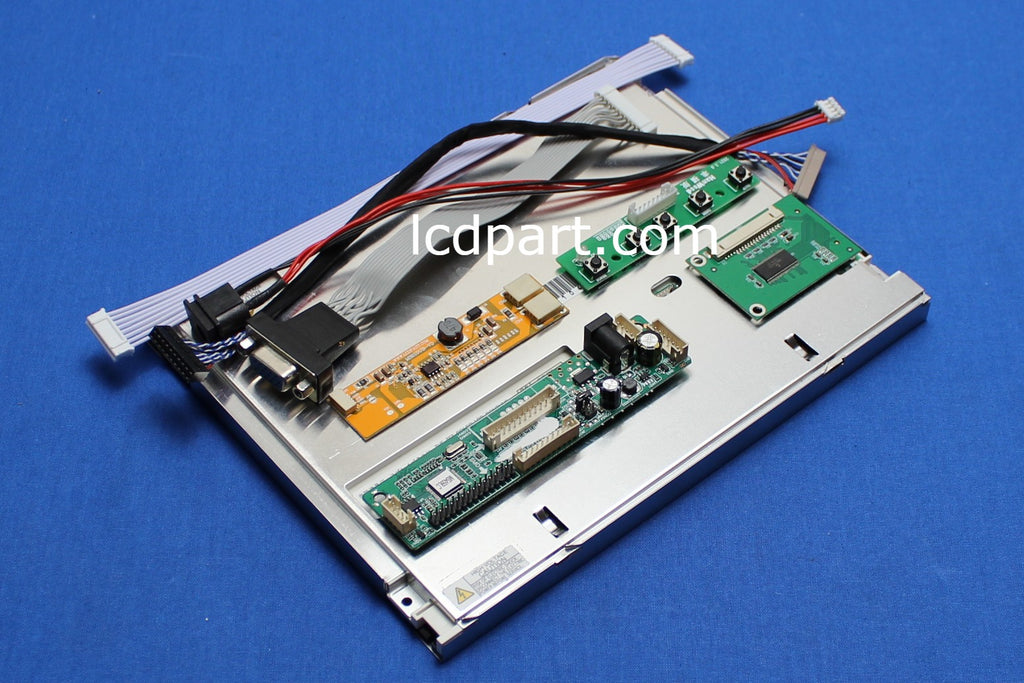

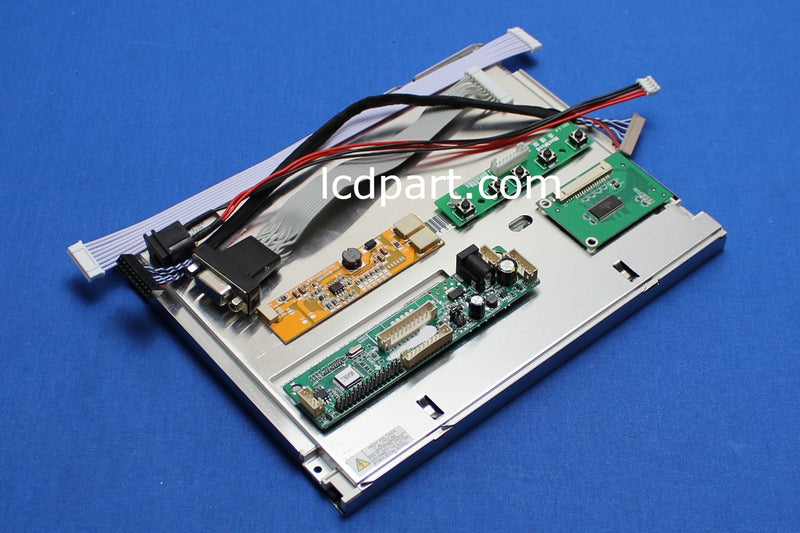

MS084RUBLCD1000 kit included the following items:
8.4" LCD, upgraded to Sunlight Readable LED Kit (640X480)
MS459LC(VGA), MS460LC (DVI and VGA) or MS489LC(DVI, HDMI, VGA, AV) LCD Controller
MS610UB LED Driver with wire harness
5 Buttons Key PCB and Wire Harness
Screen Wire Harness
LCD Controller Specifications:
Input source: DVI and VGA (or HDMI, DVI and VGA)
Accept 12V DC Input
OSD: Chinese, English, French, Italian, German, Korean. Russian, Spanish
Key Functions: On/Off, Menu, Auto, +, -(5 Buttons)
Compact Size: 110mm(L)X55mm(W)X15mm(H)
Automatically synchronizes to most industry standard modes.
Automatic image scaling and contrast enhancement.
AC-DC Adapter is NOT included.
LCD Specifications:
Item Unit Specifications
Screen Size [inch] 8.4
Native Resolution 640 X 480
Active Area [mm] 170.9(H) X 128.2(V)
Outline dimension [mm] 200.0(W) X 152.0(H) x 12.0(D)
Bolt Hole Dimension [mm] 112 X 112
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS+MS696EXT
Electrical Interface LVDS (6-bit)
White Luminance [cd/m2] 1400
Contrast Ratio 1500:1
BackLight Connector BHSR-02VS-1X1
Backlight Inverter MS610UB
Response time, Rising msec 10
Response time, Falling msec 10
Viewing Angle - Horizontal degree 85
Viewing Angle - Vertical degree 85
