MS101WLCDKIT700


Price:
$349.99

Description

This 10.1” LCD kit comes with IPS panel (wider viewing angle with much fast response time). With the native resolution 1920X1200 and 500 nit LED backlight (With our LED driver, you can clearly see all the contents under sunlight. It also comes with a 3W built-in audio amplifier. Build-in Multimedia player at USB port allows you to play photo, movie, music and text automatically. All you need to do it transfer your file to USB stick and connect it to USB port.

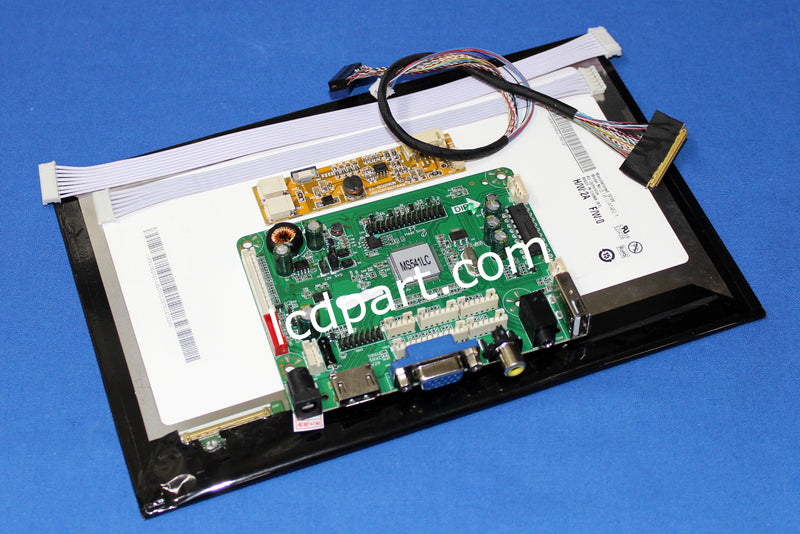

MS101WLCD700 comes with the following items:
10.1 inch IPS panel with 1920X1200 resolution.
Controller board dimension: 109mm(L)X81mm(W)X20mm(H)
7 buttons KeyPCB with wire harness
Remote control
LCD Controller Board:
Input source: AV, HDMI, VGA and USB (Build-in Multi media player)
Native Resolution: 1920X1200
Build-In 3W Audio amplifier to drive two 4 O Speakers
Accept 12V DC Input
OSD: Chinese, English, French, Italian, German, Korean. Russian & Spanish
Key Functions: On/Off, Menu, Auto, Vol+, Vol-, Select, Up and Down (7 Buttons)
Compact Size: 109mm(L)X81mm(W)X20mm(H)
Automatically synchronizes to most industry standard modes.
Automatic image scaling and contrast enhancement.
LCD Screen Specifications:
Item Unit Specifications
Screen Size [inch] 10.1
Native Resolution 1920X1200
Active Area [mm] 216.81(H) X 135.50(V)
Outline dimension [mm] 229.45(W) X 149.2(H) X 5.0(D)
Bolt Hole Dimension [mm] N/A
Input Voltage VDD [Volt] N/A
Screen Wire Harness FI-Z40S-HF-6000 40 pins
Electrical Interface LVDS 8bit
White Luminance [cd/m2] 500 (MS610UB)
Contrast Ratio 800:1
BackLight Connector I-PEX-20455-050
Backlight Inverter N/A
Response time, Rising msec 13
Response time, Falling msec 12
Viewing Angle - Horizontal degree 89
Viewing Angle - Vertical degree 89
