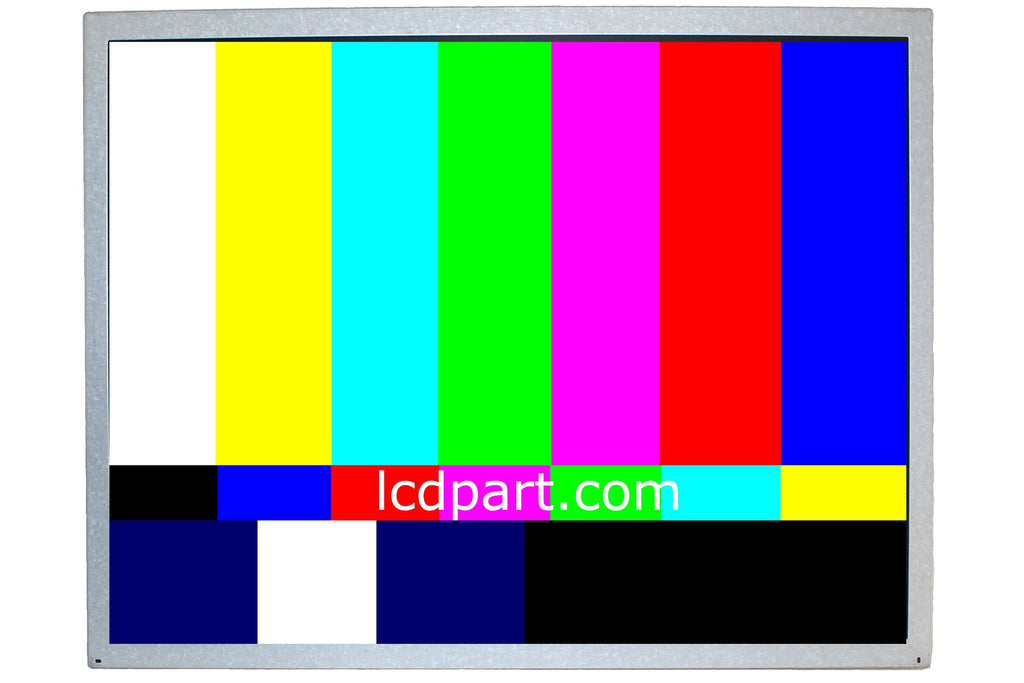

MS150RD16B Sunlight Readable 15 inch LCD screen, 1000 & 1600 nits

Luminance: 1000 nits


MS150RSBDF1420D1 is a direct replacement for the LCD screens that are listed below(same dimension, bolt hole and connector). Simply swap out your defective LCD screen with MS150RSBDF1420D1, you now have a sunlight readable Monitor.
MS150RSBDF1420D1 has a much better image quality, wider viewing angle and faster response time then your old LCD screen. It has upgraded our Sunlight Readable LED Kit and it will last 10X longer than CCFL lamps.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it! 90 days warranty!
How to Connect: MS610UB or MS456UB
MS150RSBDF1420D1 is direct replacement for the following LCD screens:
Manufacture Size LCD Screen  (Box33, 42, 43)
AUO 15" G150XG01-V0, G150XG01-V1, G150XG01-V2, G150XG01-V3, G150XG01-V4
AUO 15" G150XG02-V0, G150XG02-V1, G150XG03-V0, G150XG03-V1
AUO 15" G150XG03-V2, G150XG03-V3, G150XG03-V4, G150XG03-V5
AUO 15" M150XN07-V0, M150XN07-V1, M150XN07-V9
DLC 15" DLC1500AMG, DLC1500AMG-1
SVA 15" TMS150XG1-10TB
Tianma 15" NL150XG01L-01
MS150RUBDF1420D1 General Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 326.5(W) X 253.5(H) X 12.(D)
Bolt Hole Dimension [mm] 176 X 224
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6-bit/8-bit)
White Luminance [cd/m2] 1000/1600(UB/SB)
Contrast Ratio 1500:1/2000:1
BackLight Connector BHSR-02VS-1X1/BHSR-02VS-1X2
Backlight Inverter MS610UB/MS456UB
Response time, Rising msec 5.7
Response time, Falling msec 2.3
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_1024X768-6Bit
