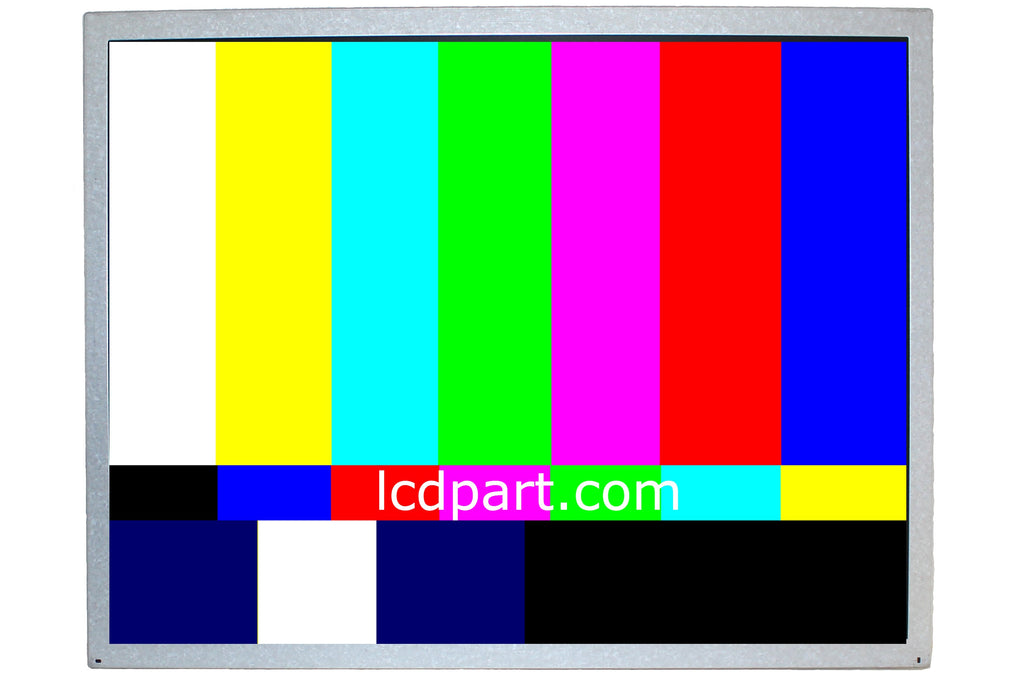

MS170RUBFIX30D1 Sunlight Readable 17 inch LCD screen, 1200 nits



MS170RUBFIX30D1 is a direct replacement for the LCD screens that are listed below(same dimension, bolt hole and connector). Simply swap out your defective LCD screen with MS170RUBFIX30D1, you now have a sunlight readable Monitor.
MS170RUBFIX30D1 has a much better image quality, wider viewing angle and faster response time then your old LCD screen. It has upgraded our Sunlight Readable LED Kit and it will last 10X longer than CCFL lamps.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it! 90 days warranty!
MS170RUBFIX30D1 is direct replacement for the following LCD screens:
Manufacture Size LCD Screen
AUO 17" G170ETN01.0, G170ETN02.0, G170ETN02.1, M170EG01-V0
AUO 17" M170EG01-V1, M170EG01-V2, M170EG01-V3, M170EG01-V5
AUO 17" M170EG01-V6, M170EG01-V7, M170EG01-V8, M170EG01-V9
AUO 17" M170EG01-VD, M170EG01-VA, M170EG01-VG, G170EG01-V1
AUO 17" M170EG02-V3, M170ETN01.0, M170ETN01.1
AUO 17" G170EG01-V0, G170EG01-V1
CHIMEI 17" M170E5-L05, M170E5-L09, M170E8-L01, M170EGE-L20
ChungHwa 17" CLAA170EA07
HannStar 17" HSD170ME13, HSD170MS13
Innolux 17" MT170E01-V1, MT170EN01-V7, MT170EN01-VA
LG Philips
17" LM170E01-A5, LM170E01-TLA1, LTM170E01-TLA8, LM170E01-TLB3
LG Philips 17" LM170E03-TLG1, LM170E03-TLG3, LM170E03-TLJ1, LM170E03-TLJ5
Mitsubishi 17" AA170EB01
Samsung 17" LTM170ET01, LTM170E6-L02, LTM170E6-L04, LTM170E6-L0x
Samsung 17" LTM170EU-L01, LTM170EU-L11, LTM170EU-L21, LTM170EU-L25
Samsung 17" LTM170EU-L31
Sharp 17" LQ170E1LG11
SVA 17" SVA170SX10TB
MS170RUBFIX30D1 General Specifications:
Item Unit Specifications
Screen Size [inch] 17
Native Resolution 1280 X 1024
Active Area [mm] 337.920(H) X 270.336(V)
Outline dimension [mm] 358.5(W) X 296.5(H) X 15.8(D)
Bolt Hole Dimension [mm] 240 X 261
Input Voltage VDD [Volt] 5V
Screen Wire Harness FIX-30S-2LVDS
Electrical Interface LVDS (8-bit)
White Luminance [cd/m2] 1200
Contrast Ratio 1200:1
BackLight Connector BHR-02VS-1X2
Backlight Inverter MS615UB
Response time, Rising msec 3.5
Response time, Falling msec 1.5
Viewing Angle - Horizontal degree 170
Viewing Angle - Vertical degree 160
LCD controller kit FIX-30S-2LVDS_1280X1024
