Description

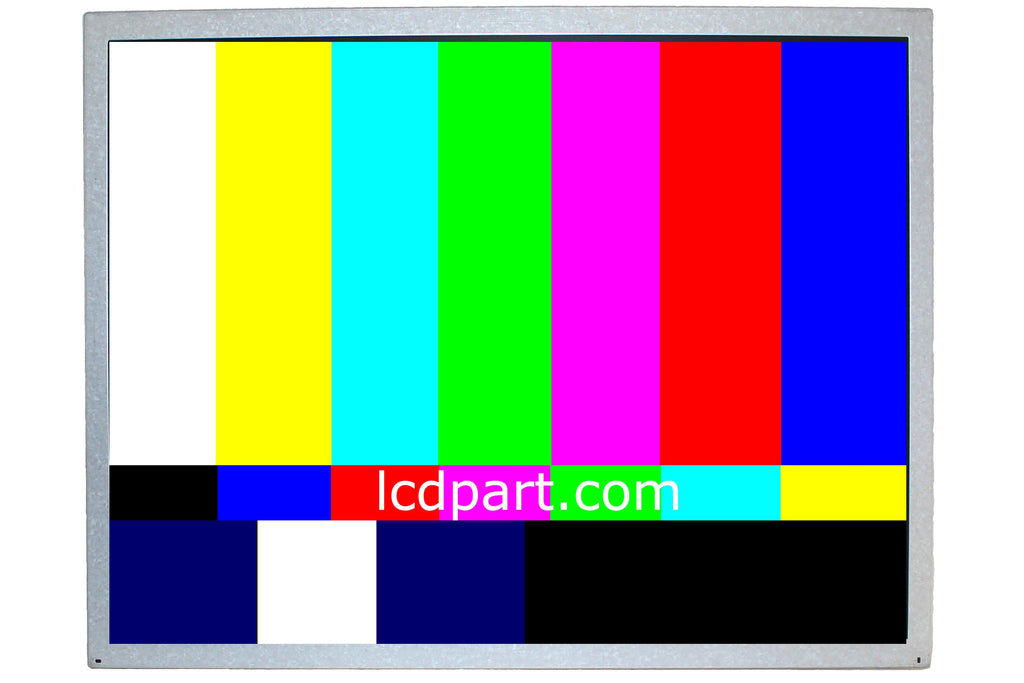

MS190RD1 is a direct replacement for the LCD screens that are listed below(same dimension, bolt hole and connector). Simply swap out your defective LCD screen with MS190RD1, you now have a sunlight readable Monitor.
MS190RD1 has a much better image quality, wider viewing angle and faster response time then your old LCD screen. It has upgraded our Sunlight Readable LED Kit and it will last 10X longer than CCFL lamps.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it! 90 days warranty!
MS190RUBFIX30D1 is is direct replacement for the following LCD screens:
MS190RUBFIX30D1 General Specifications:
Manufacture | Size | LCD Screen (BOX44) |
AUO | 19" | M190EG01-V0, M190EG01-V2, M190EG01-V3, M190EG01-V4 |
AUO | 19" | M190EG02-V0, M190EG02-V1, M190EG02-V2, M190EG02-V3 |
AUO | 19" | M190EG02-V4, M190EG02-V7, M190EG02-V8, M190EG02-V9 |
AUO | 19" | M190ETN01.0, M190ETN01.1, G190ETN01.0, G190ETN01.3 |
AUO | 19" | G190EAN01.0, G190ETN01.2, G190ETN01.6 |
AUO | 19" | G190EG02-V0,G190EG02-V1,G190EG02-V2 |
Chi Mei | 19" | M190E5-L0A, M190E5-L0E, M190E5-P01, |
HannStar | 19" | HSD190MEN13-A100, HSD190MEN3, HSD190MEN6-A |
LiteMax | 19" | DLF1954-ENN-A01, DHL1954-ENN-A01, DHL1954-ENN-A01 |
LiteMax | 19" | DHF1954-ENN-B01, DHL1954-ENN-C01 |
LG Philips |
19" | LM190E03-TLB4, LM190E08-TLG2, LM190E08-TLG3 |
LG Philips |
19" | LM190E05-SL02, LM190E05-SL03 |
LG Philips | 19" | LM190E08-TLGE, LM190E08-TLJ6, LM190E08-TLJ7 |
LG Philips | 19" | LM190E08-TLJ8, LM190E08-TLL1, LM190E08-TLL3 |
LG Philips | 19" | LM190E08-TLL4, LM190E09-TLA1, LM190E09-TLB1 |
LG Philips | 19" | LM190E09-TLD1, LM190E09-TLK1, LM190E09-TLC1 |
Samsung | 19" | LTM190E4-L01, LTM190E4-L02. LTM190EP01, LTM190ET01 |
Samsung | 19" | LTM190EX-L01, LTM190EX-L31, LTM190E4-L21, LTM190E4-L32 |
Samsung | 19" | LTM190EX-L05, |
Item | Unit | Specifications |
Screen Size | [inch] | 19 |
Native Resolution | 1280 X 1024 | |
Active Area | [mm] | 376.32(H) X 301.06(V) |
Outline dimension | [mm] | 396(W) X 324(H) X 16.3(D) |
Bolt Hole Dimension | [mm] | 174 X 192 |
Input Voltage VDD | [Volt] | 5V |
Screen Wire Harness | FIX-30S-2LVDS | |
Electrical Interface | LVDS (8-bit) | |
White Luminance | [cd/m2] | 1200 |
Contrast Ratio | 1200:1 | |
BackLight Connector | BHR-02VS-1X2 | |
Backlight Inverter | MS615UB | |
Response time, Rising | msec | 3.4 |
Response time, Falling | msec | 1.6 |
Viewing Angle - Horizontal | degree | 85 |
Viewing Angle - Vertical | degree | 85 |
LCD controller kit | FIX-30S-2LVDS_1280X1024 |
