This 19" LCD kit had upgraded to UB70 series LED backlight kit. It is designed to be easily integrated into (or Replacing your existing defective LCD monitor) kiosks, POS, avionics, Vending machine, gaming and all other applications. It is easy to install. Anyone can do it!
You also have an option to choose other type of controller board on right side:

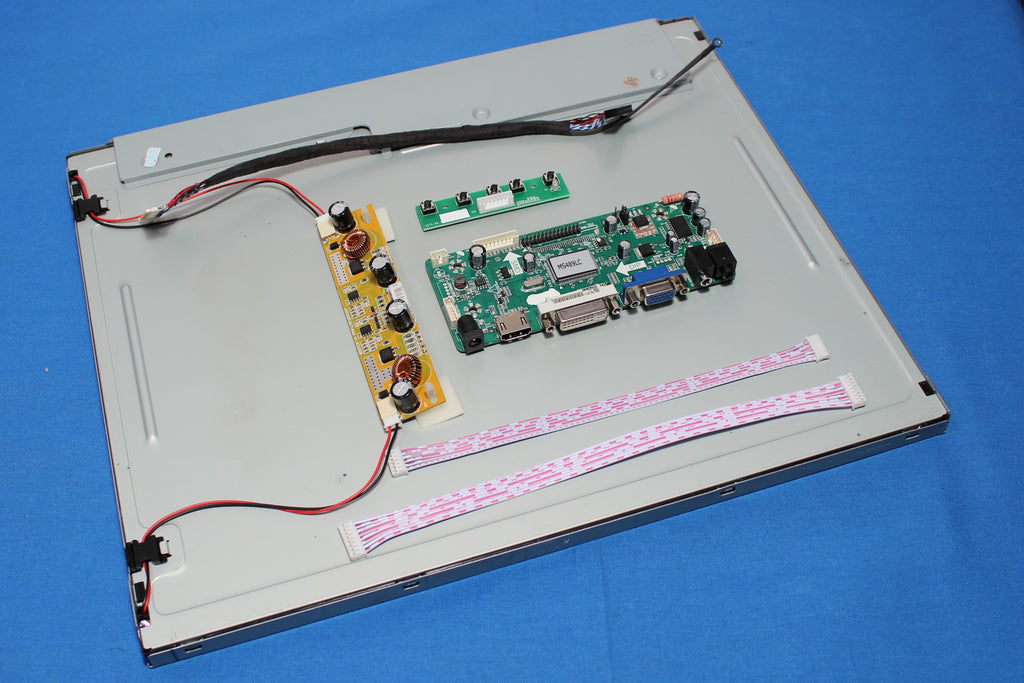

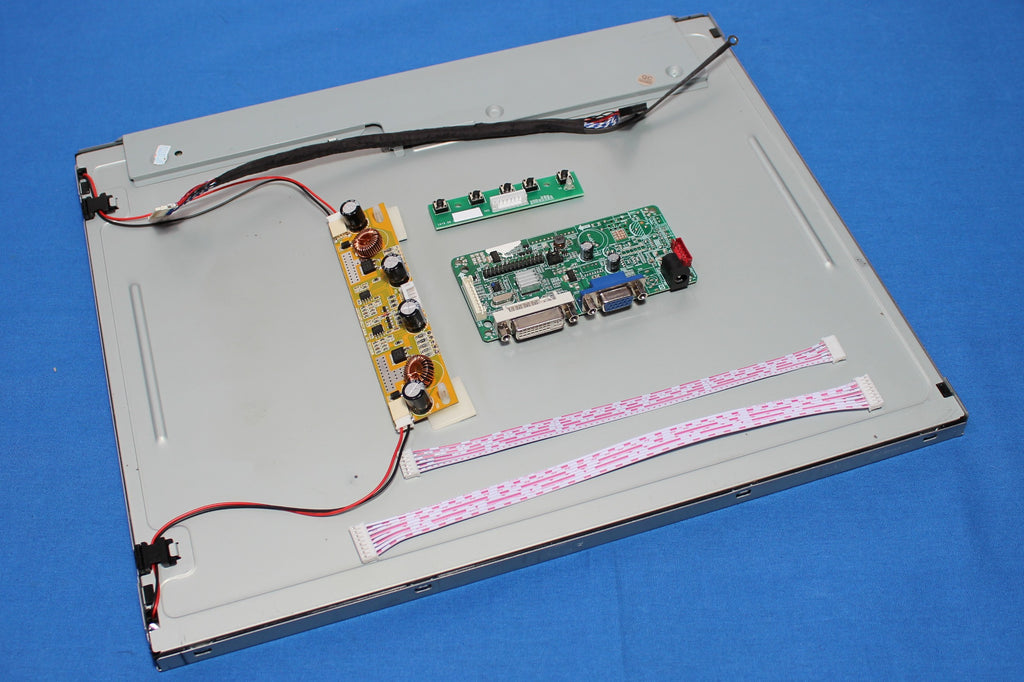

MS190RUBLCDKIT1200 kit included the following items:
19 inch Refurbished LCD, upgraded to Sunlight Readable LED kit (1280X1024)
MS460LC LCD Controller(or MS489LC)
MS615UB LED Driver with wire harness
5 Buttons Key PCB and Wire Harness
Screen Wire Harness
LCD Controller Specifications:
Input source: DVI and VGA (or HDMI, DVI and VGA)
OSD: Chinese, English, French, Italian, German, Korean. Russian & Spanish
Key Functions: On/Off, Menu, Auto, +, - (5 Buttons)
Compact Size: 110mm(L)X55mm(W)X15mm(H)
Automatic image scaling and contrast enhancement.
AC-DC Adapter is NOT included.
|Native Resolution||1280 X 1024|
|Active Area||[mm]||376.32(H) X 301.06(V)|
|Outline dimension||[mm]||396(W) X 324(H) X 17.5(D)|
|Bolt Hole Dimension||[mm]||174 X 192|
|Input Voltage VDD||[Volt]||5V|
|Screen Wire Harness||FIX-30S-2LVDS|
|Electrical Interface||Dual channel LVDS (8-bit)|
|Response time, Rising||msec||4.5|
|Response time, Falling||msec||1.5|
|Viewing Angle - Horizontal||degree||80|
|Viewing Angle - Vertical||degree||80|
