Description

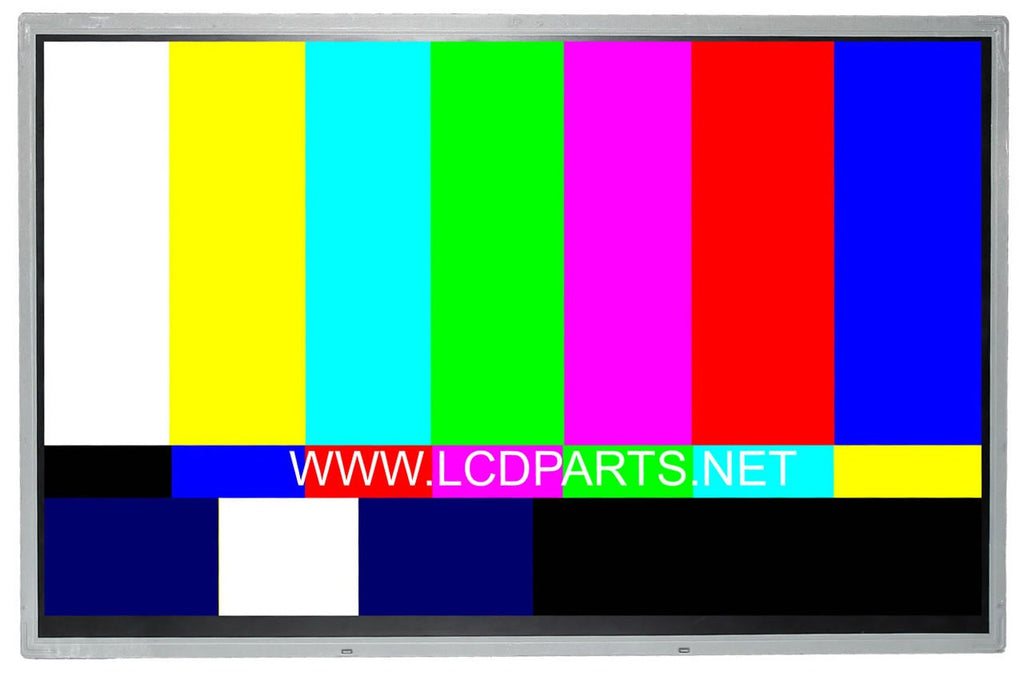

MS190WD1 is a direct replacement for the LCD screens that are listed below(same dimension, bolt hole and connector). Simply swap out your defective LCD screen with MS190WD1, you now have a sunlight readable Monitor.
MS190WD1 has a much better image quality, wider viewing angle and faster response time then your old LCD screen. It has upgraded our Sunlight Readable LED Kit and it will last 10X longer than CCFL lamps.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it! 90 days warranty!
MS190WD1 is compatible with the following LCD screens
Manufacture | Size | LCD Screen (front) |
AUO | 19" | M190PW01-V0, M190PW01-V6, M190PW01-V8 |
Innolux | 19" | MT190AW02-V2, MT190AW02-VW |
LG Philips | 19" | LM190WX1-TLL1, LM190WX1-TLL7 |
LG Philips | 19" | LM190WX1-TLG1, LM190WX1-TLG2 |
LG Philips | 19" | LM190WX2-TLB1 |
Samsung | 19" | LTM190M2-L31, LM190WX1-TLP2 |
Samsung | 19" | LTM190BT03, LTM190BT06, LTM190BT07 |
MS190RD1 General Specifications:
Item | Unit | Specifications (Box 10) |
Screen Size | [inch] | 19 |
Native Resolution | 1440 X 900 | |
Active Area | [mm] | 408.24(H) X 255.15(V) |
Outline dimension | [mm] | 428.0(W) X 278.0(H) X 14.5(D) |
Bolt Hole Dimension | [mm] | 98 X 98 |
Input Voltage VDD | [Volt] | 5V |
Screen Wire Harness | FIX-30S-2LVDS | |
Electrical Interface | LVDS (8-bit) | |
White Luminance | [cd/m2] | 1200 |
Contrast Ratio | 1200:1 | |
BackLight Connector | BHR-02VS-1X2 | |
Backlight Inverter | MS615UB | |
Response time, Rising | msec | 1.3 |
Response time, Falling | msec | 2.7 |
Viewing Angle - Horizontal | degree | 88 |
Viewing Angle - Vertical | degree | 85 |
LCD controller kit | FIX-30S-2LVDS_1440X900 |
