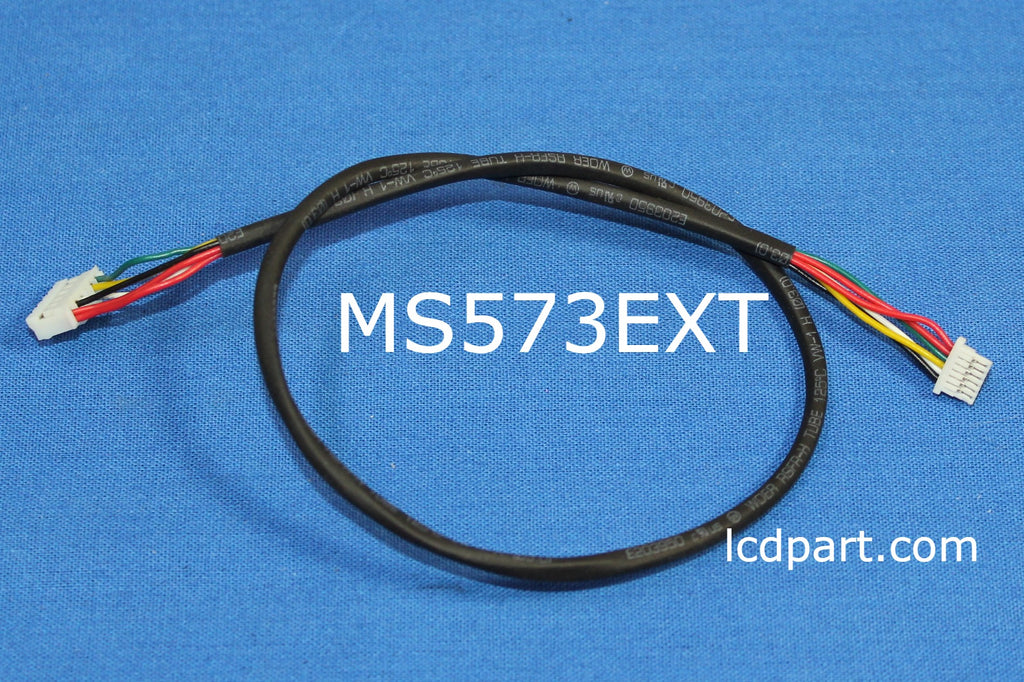

MS573EXT, A LED wire Harness


Price:
$7.99

Description

This is a 6 pin to 5 pin LED wire. The length of the wire is about 300mm. It is commonly used in AUO LCD screens.
6 pin 2.0mm pitch side: P1/P2=VIN, P3=ENA, P5/P6=GND. Same pinout as our LCD controllers
6 pin 1.00mm pitch side: P1/P2=VIN, P3/P4=GND, P5=ENA, P6=PWM
MS573EXT is the same as SHLP-06V-S-B connectors
This LED wire harness is compatible with the following LCD Screens:
Manufacturer Size LCD Screen
SHARP 10.4" LQ104S1LG81, LQ104V1DG81, LQ104V1LG81
SHARP 12.1" LQ121S1LG73, LQ121S1LG81, LQ121S1LG84
SHARP 12.1" LQ121S1LG86, LQ121S1LG88
SHARP 15" LQ150X1LG91, LQ150X1LG92, LQ150X1LG93
SHARP 15" LQ150X1LG95, LQ150X1LG96, LQ150X1LG98
SHARP 15" LQ150X1LW12, LQ150X1LX95
