MSX-501-LCD is a direct replacement for MORI SEIKI NH4000DCG that hs MSX-501 control. MSX-501-LCD has a much better image quality and is much brighter than old MSX-501. Wider viewing angle and faster response time then old MORI SEIKI MSX-501. It has upgraded our MSX-501-LEDKIT and MSX-501-LCD will last 10X longer than CCFL lamps. It is easy to install! No technical skills required! Soldering is required! Anyone can do it! 1 year warranty!
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on MORI SEIKI MSX-501
Remove old MORI SEIKI MSX-501
Mount MSX-501-LCD back to the same location
Connect Screen wire harness to MSX-501-LCD
Connect wire adapter to the existing inverter wire harness
MSX-501-LCD has the same interface connector, dimension and screw hole as the old MSX-501.
MSX-501-LCD included the following items:

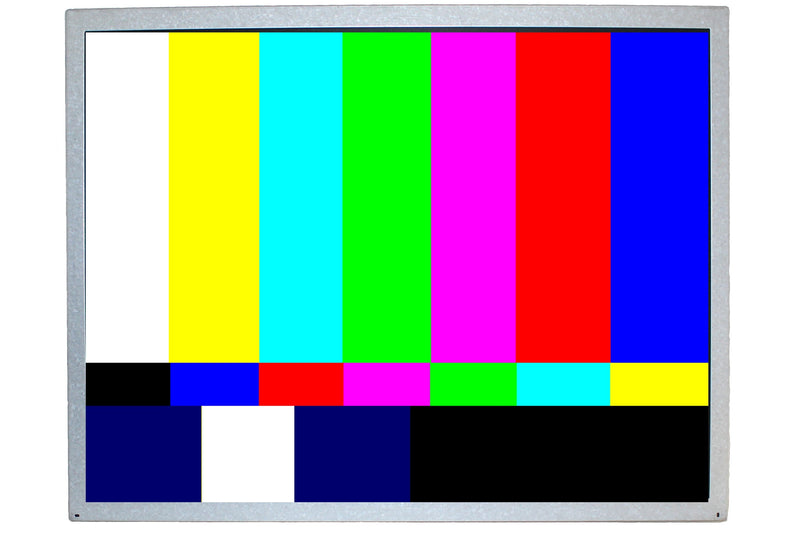

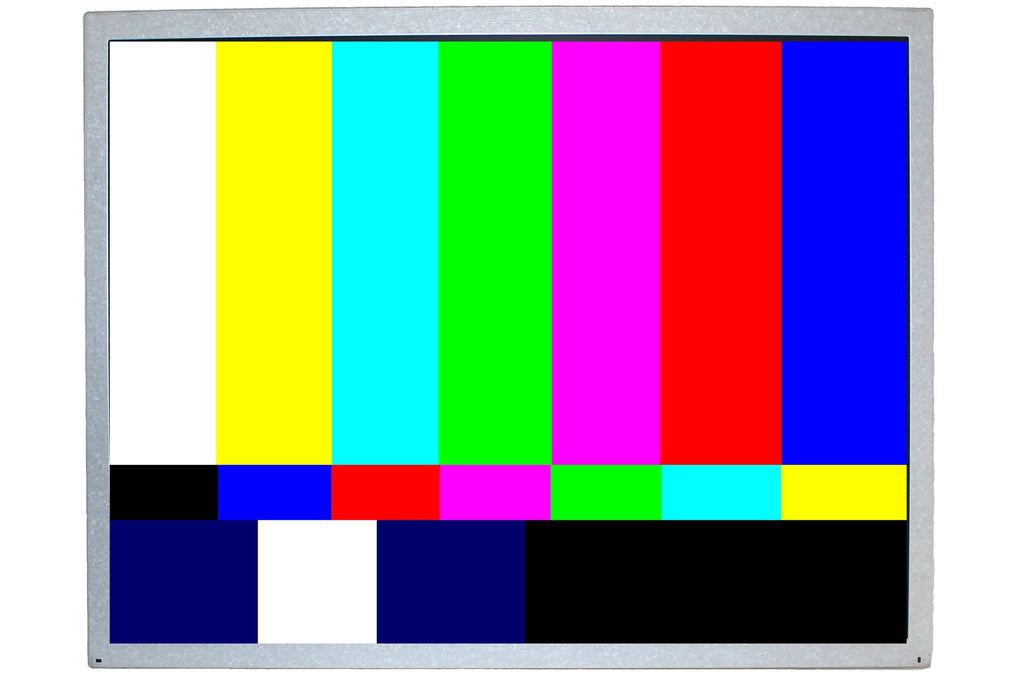

1) 15 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS456UB LED driver
1) A wire adapter is included
