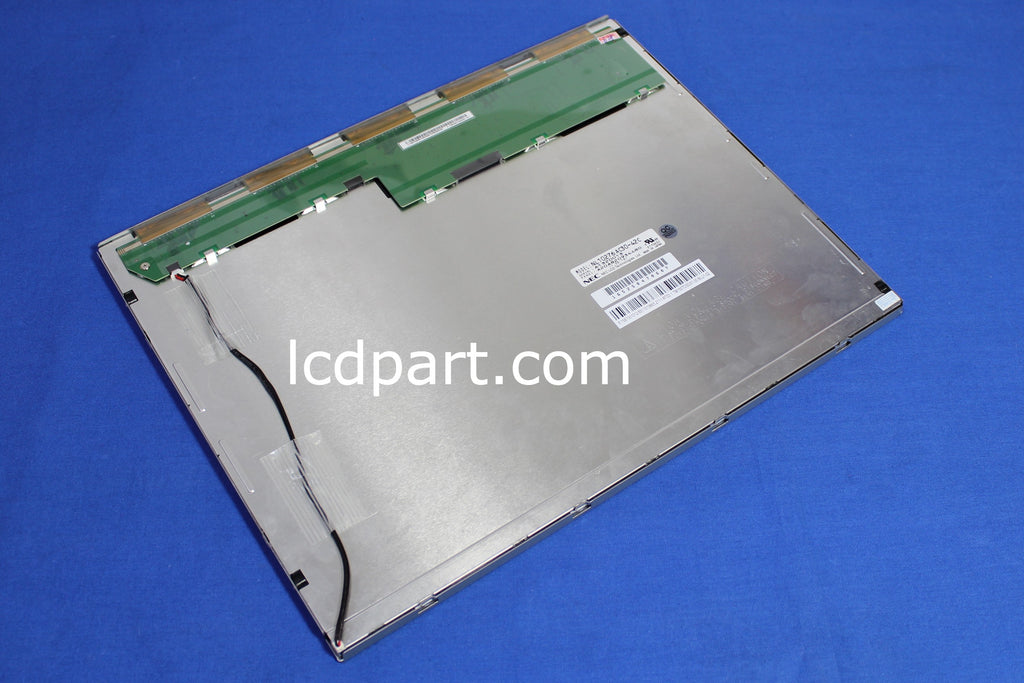

NL10276AC30-42C, 15 inch NEC LCD screen



Refurbished NEC NL10276AC30-42C LCD screen. 90 days warranty.
NL10276AC30-42C , one of the most popular LCD screens in control industrial and medical applications. This 15 inch NL10276AC30-42C is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 600 nits (based on its datasheet). By upgrading to our LSRSB44318X11R5 LED kit, it can reach 1400 nits or higher

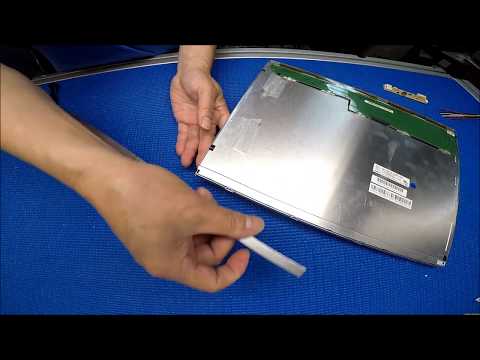

Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications (BOX22)
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 326.5(W) X 253.5(H) x 11.8(D)
Bolt Hole Dimension [mm] 224 X 176
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6-bit), P20: 6 Bit=O/NC, 8 Bit=L/GND
White Luminance [cd/m2] 600
Contrast Ratio 600:1
BackLight Connector P24038P6, 6P 1.25mm,  150LHS202, MS606EXT
Backlight Inverter P1/P2=VIN, P3/P4=GND, P5=ADJ,  P6=ENA
Response time, Rising msec 3
Response time, Falling msec 5
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_1024X768-6Bit
LED Backlight kit LSRSB44318X11R5
Direct Replacement LCD MS150RSBDF1420D1
