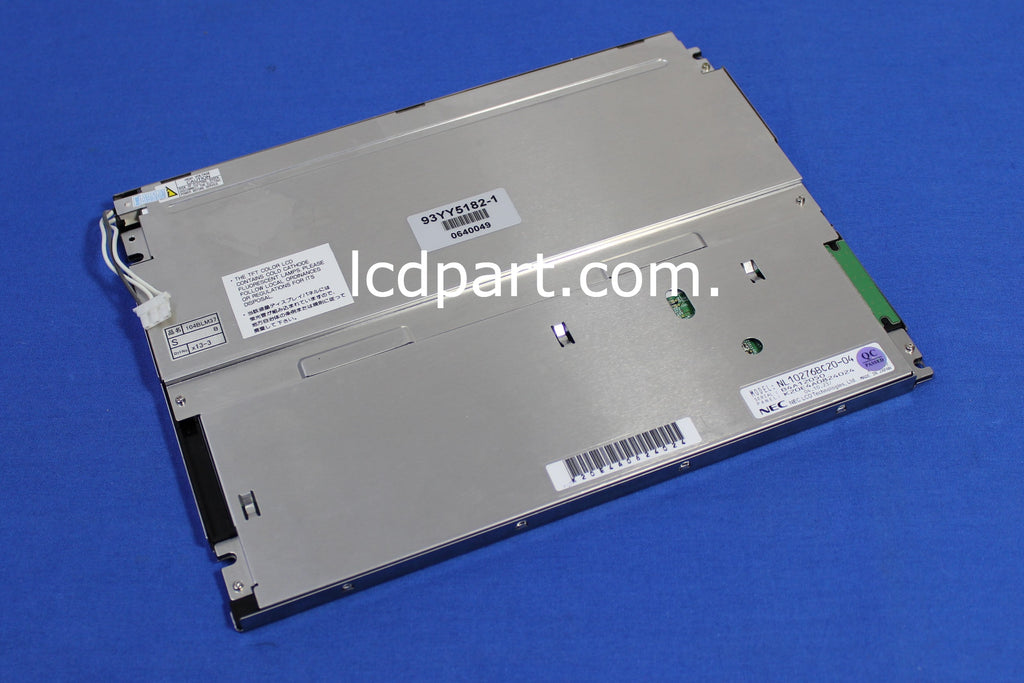

NL10276BC20-04 10.4 inch LCD screen


Price:
$199.99

Description

Refurbished NEC NL10276BC20-04.  It comes with a 90 days warranty. It looks like new condition.
NEC NL10276BC20-04, one of the most popular LCD panels in an industrial application. This 10.4 inch NEC NL10276BC20-04 is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB54220LED5620X1+MS610UB+MS534EXT LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
MS534EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 90 days warranty.
How to Connect
LED Upgrade kit for NEC NL10276BC20-04 is Listed below
General Specifications:
Item Unit Specifications (C15)
Screen Size [inch] 10.4
Native Resolution 1024 X 768
Active Area [mm] 210.4(H) X 157.8(V)
Outline dimension [mm] 243.0(W) X 185.1(H) x 11(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3V typ.
Screen Wire Harness DF14-20P-1LVDS-R
Electrical Interface LVDS (6-bit)
White Luminance [cd/m2] 300
Contrast Ratio 300:1
Backlight Connector BHR-03VS-1X1, 104LHS35
Backlight Inverter 104PW191
Response time, Rising msec 15
Response time, Falling msec 40
Viewing Angle - Horizontal degree 60
Viewing Angle - Vertical degree 60
LCD controller kit DF14-20P-1LVDS-R_1024X768-6Bit
LED Backlight kit UB54220LED5620X1+MS610UB+MS534EXT
