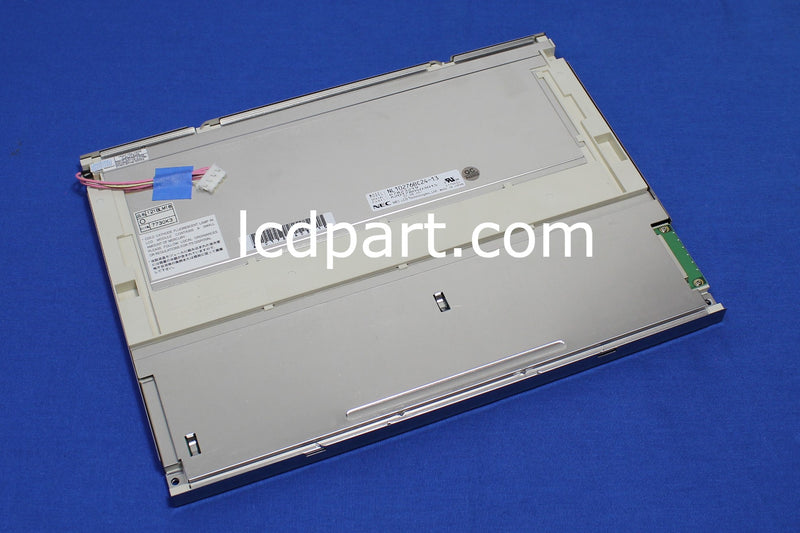

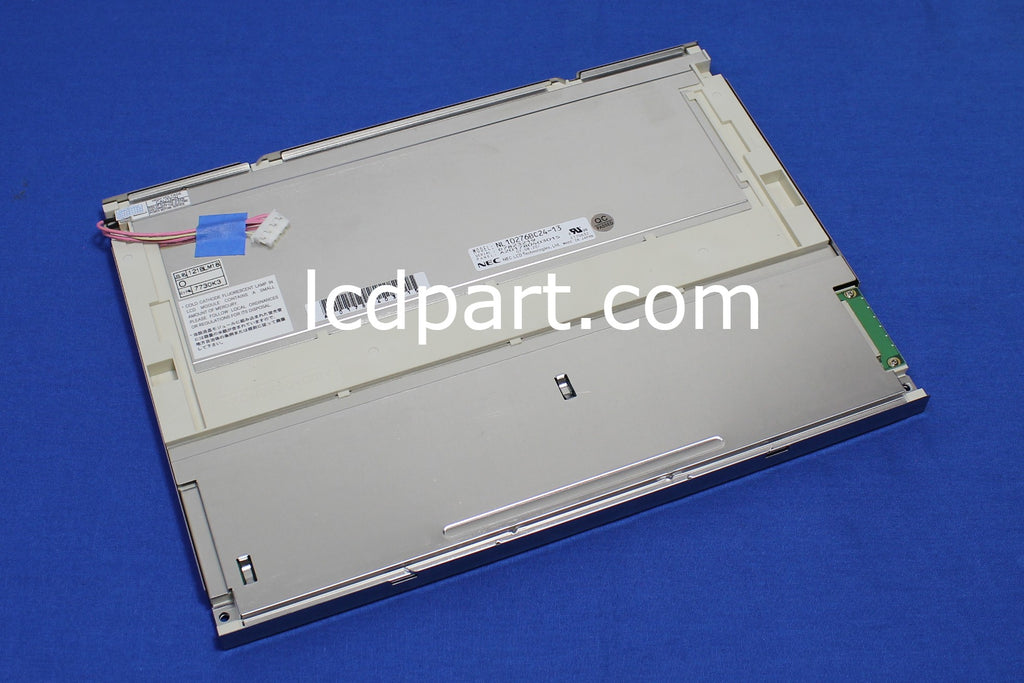

NL10276BC24-13, 12.1 Inch NEC LCD screen



This refurbished NEC NL10276BC24-13 LCD screen has been replaced with our new CCFL backlight lamps, new polarize film and tested. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty
NEC NL10276BC24-13, one of the most popular LCD panels in an industrial application. This 12.1 inch NEC NL10276BC24-13 is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB54255LED6420X1+MS610UB LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included.  It is easy to Install! Anyone can do it! 90 days warranty.
LED Upgrade kit for NEC NL10276BC24-13 is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 12.1
Native Resolution 1024 X 768
Active Area [mm] 245.76(H) X 184.32(V)
Outline dimension [mm] 280.0(W) X 210.0(H) x 15.0(D)
Bolt Hole Dimension [mm] 181.3 x 181.3
Input Voltage VDD [Volt] 3.3V typ.
Screen Wire Harness DF14-20P-1LVDS-R
Electrical Interface LVDS (6bit)
White Luminance [cd/m2] 350
Contrast Ratio 300:1
Backlight Connector
Backlight Inverter
Response time, Rising msec N/A
Response time, Falling msec N/A
Viewing Angle - Horizontal degree 70
Viewing Angle - Vertical degree 55
LCD controller kit DF14-20P-1LVDS-R_1024X768-6Bit
LED Backlight kit UB54255LED6420X1+MS610UB
