NL10276BC30-04D 15 inch NEC LCD screen


Price:
$339.99

Description

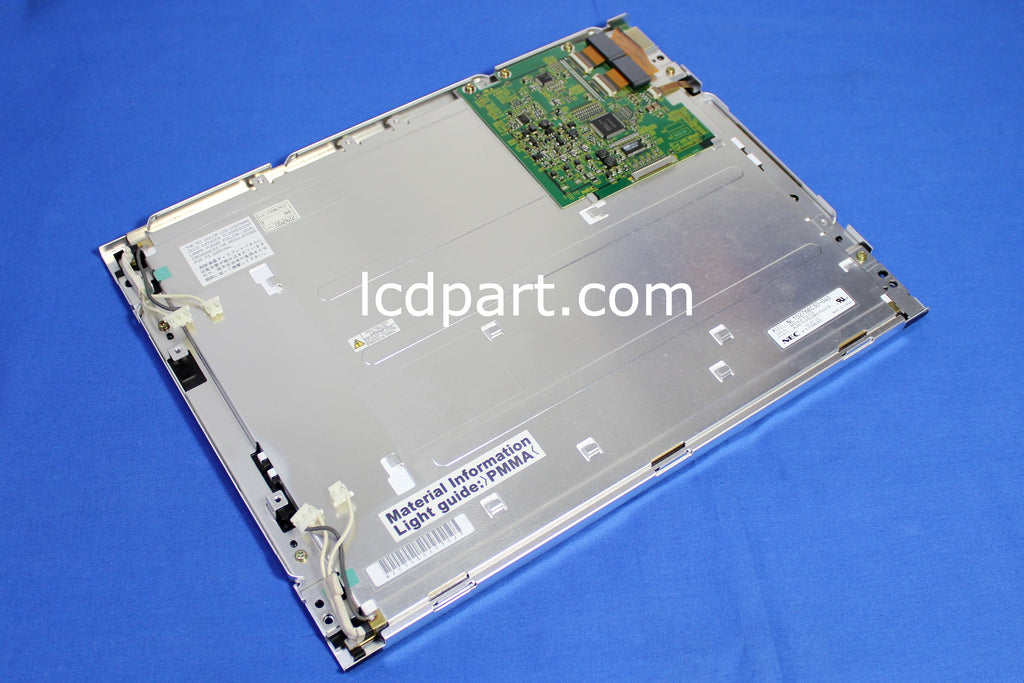

This refurbished NEC NL10276BC30-04D screen has been replaced with our new CCFL backlight lamps, new polarize film and there are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty

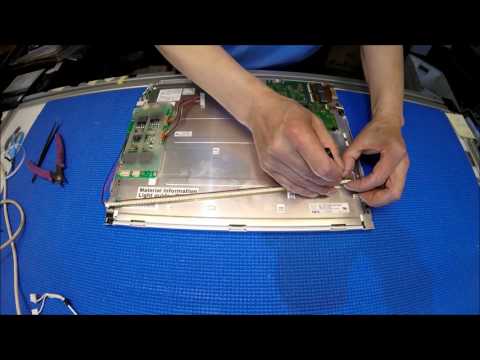

NEC NL10276BC30-04D, one of the most popular LCD panels in an industrial application. This 15 inch NEC NL10276BC30-04D is originally equipped with quad CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB54318LED8020X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED Upgrade kit for NEC NL10276BC30-04D is listed below)
General Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 350.0(W) X 265.0(H) x 21.5(D)
Bolt Hole Dimension [mm] 197 X 204
Input Voltage VDD [Volt] 5V
Screen Wire Harness DF14-20P-1LVDS-R
Electrical Interface LVDS (6-bit)
White Luminance [cd/m2] 150
Contrast Ratio 300:1
BackLight Connector BHR-03VS-1X2, BHSR-02VS-1X2, 150LHS12
Backlight Inverter 150PW081
Response time, Rising msec 15
Response time, Falling msec 40
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS-R_1024X768-6Bit
LED Backlight kit UB54318LED8020X2
