Description
New NEC NL10276BC30-15 LCD Screen. 90 days warranty.

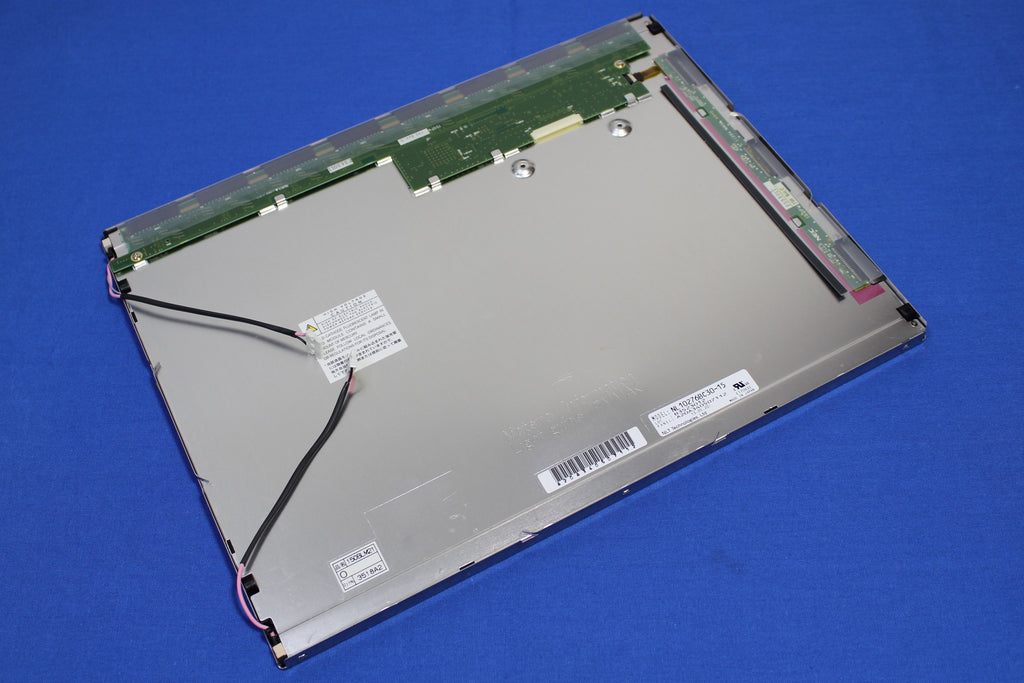

NEC NL10276BC30-15 , one of the most popular LCD panels in an industrial application. This 15 inch NEC NL10276BC30-15 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB36318LED6420X2+MS534EXT LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
MS534EXT wire adapter is included. connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for NEC NL10276BC30-15 is Listed below
General Specifications:
| Item | Unit | Specifications |
| Screen Size | [inch] | 15 |
| Native Resolution | 1024 X 768 | |
| Active Area | [mm] | 304.128(H) X 228.096(V) |
| Outline dimension | [mm] | 328.0(W) X 252.0(H) x 11.0(D) |
| Bolt Hole Dimension | [mm] | 225 X 176 |
| Input Voltage VDD | [Volt] | 3.3V |
| Screen Wire Harness | DF14-20P-1LVDS | |
| Electrical Interface | LVDS (8-bit) | |
| White Luminance | [cd/m2] | 250 |
| Contrast Ratio | 400:1 | |
| Backlight Connector | BHR-03VS-1X2, 150LHS20 | |
| Backlight Inverter | N10195F4(LD2909) | |
| Response time, Rising | msec | 8 |
| Response time, Falling | msec | 17 |
| Viewing Angle - Horizontal | degree | 60 |
| Viewing Angle - Vertical | degree | 60 |
| LCD controller kit | DF14-20P-1LVDFS_1024X768-8Bit | |
| LED Backlight kit | UB36318LED6420X2+MS534EXT |
