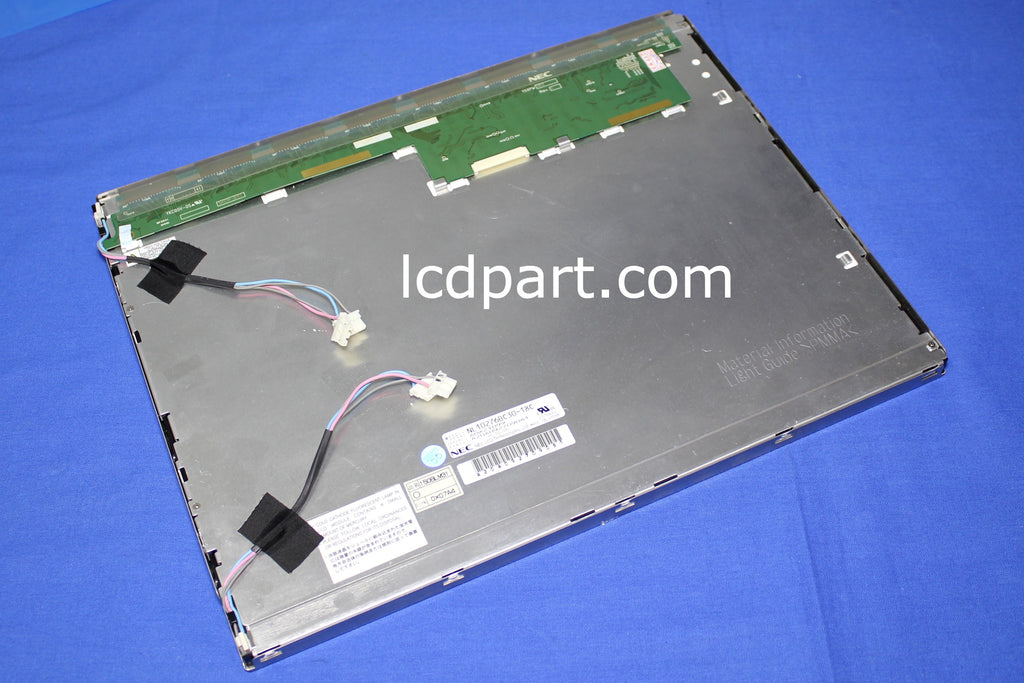

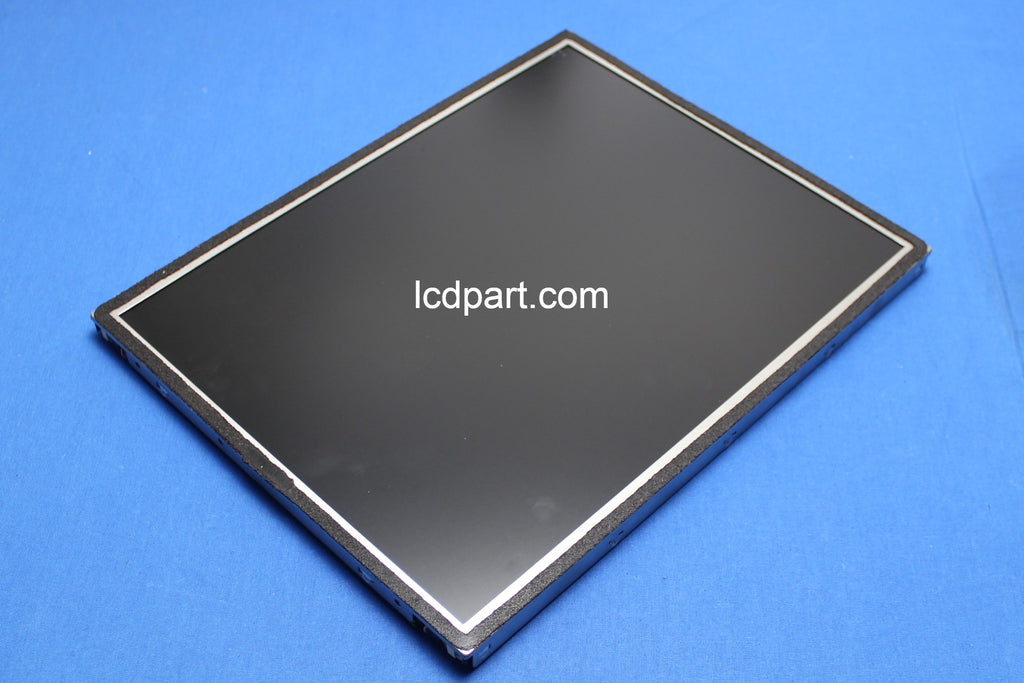

NL10276BC30-18C


Price:
$229.99

Description

Refurbished NEC NL10276BC30-18C. 90 days warranty.

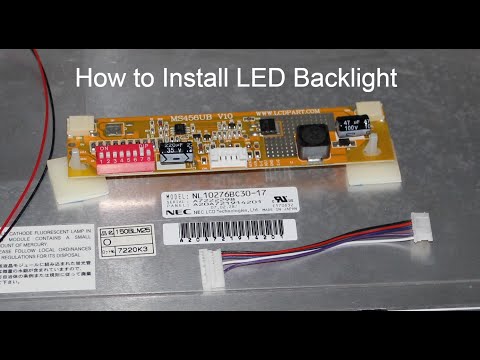

NEC NL10276BC30-18C, one of the most popular LCD panels in an industrial application. This 15 inch NEC NL10276BC30-18C is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB Series LED kit is the best option(LED Upgrade kit for NEC NL10276BC30-18C is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
MS534EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 90 days warranty.
General Specifications:
Item Unit Specifications (BOX31)
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 326.5(W) X 253.5(H) x 17.0(D)
Bolt Hole Dimension [mm] 176 X 224
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (8-bit), P20, 6 Bit=H(3.3V), 8 Bit=O/NC
White Luminance [cd/m2] 600
Contrast Ratio 600:1
BackLight Connector BHR-03VS-1X4, 150LHS29
Backlight Inverter 150PW231
Response time, Rising msec 4
Response time, Falling msec 14
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_1024X768-8B
LED Backlight kit UB54318LED8020X2+MS624EXT
Direct Replacement LCD MS150RSBDF1420D1
