This Refurbished NEC NL10276BC30-33D LCD screen has been replaced with our new CCFL back light lamps, new polarize film and there are no scratches and no pressure marks on the screens. Guaranteed! Like new condition ! 90 days warranty

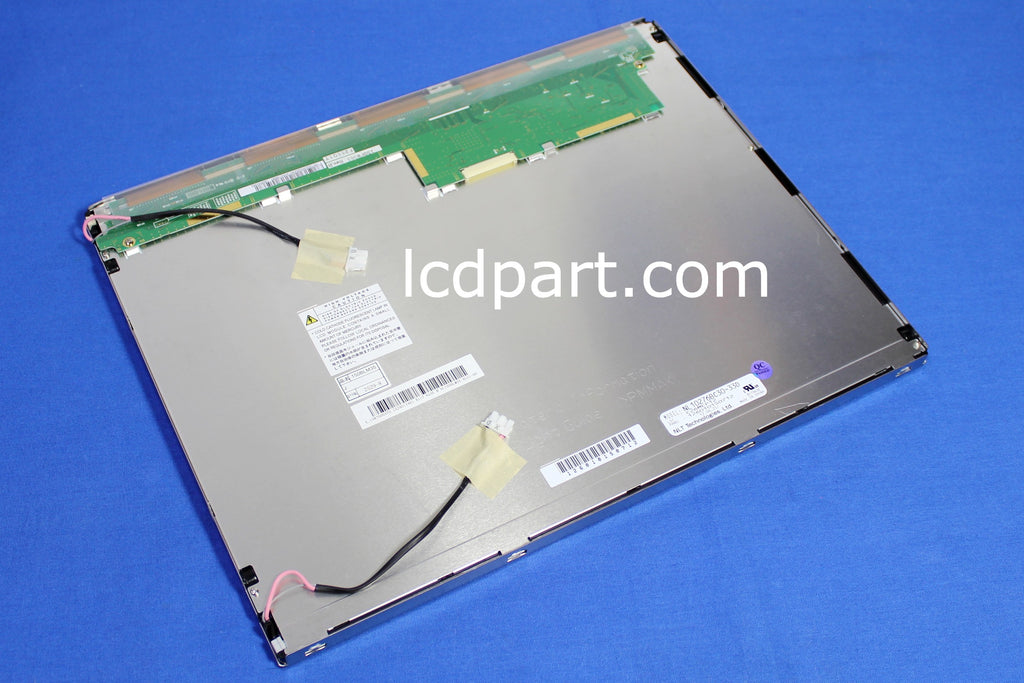

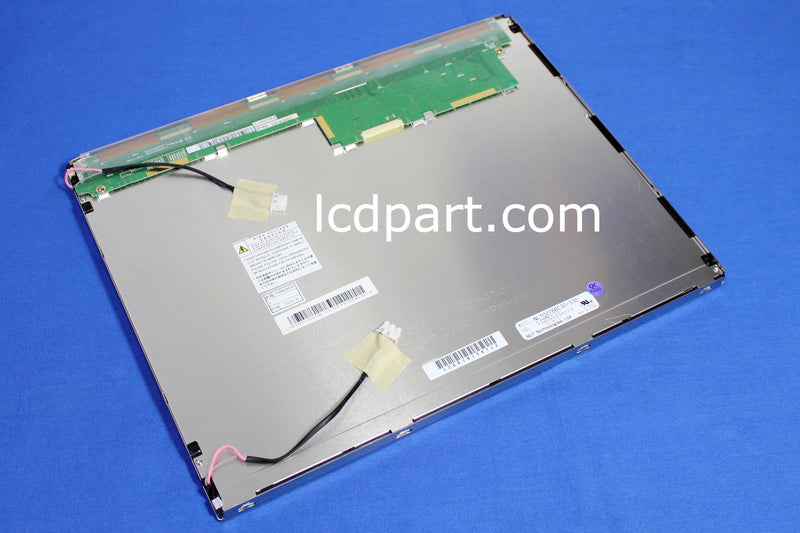

NEC NL10276BC30-33D, one of the most popular LCD panels in an industrial application. This 15 inch NEC NL10276BC30-33D is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB Series LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
MS534EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 90 days warranty.

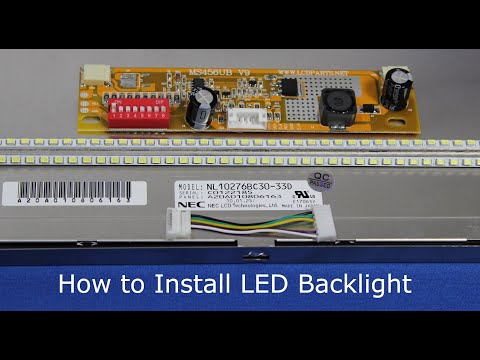

LED Upgrade kit for NEC NL10276BC30-33D is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 326.5(W) X 253.5(H) x 12.0(D)
Bolt Hole Dimension [mm] 176 X 224
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS(8-bit), P20: 6 Bit=H(3.3V), 8 Bit=O/NC
White Luminance [cd/m2] 400
Contrast Ratio 500:1
BackLight Connector BHR-03VS-1X2, 150LHS34
Backlight Inverter 150PW331
Response time, Rising msec 3
Response time, Falling msec 15
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_1024X768-8B
LED Backlight kit UB36318LED6420X2+MS534EXT
Direct Replacement LCD MS150RSBDF1420D1
