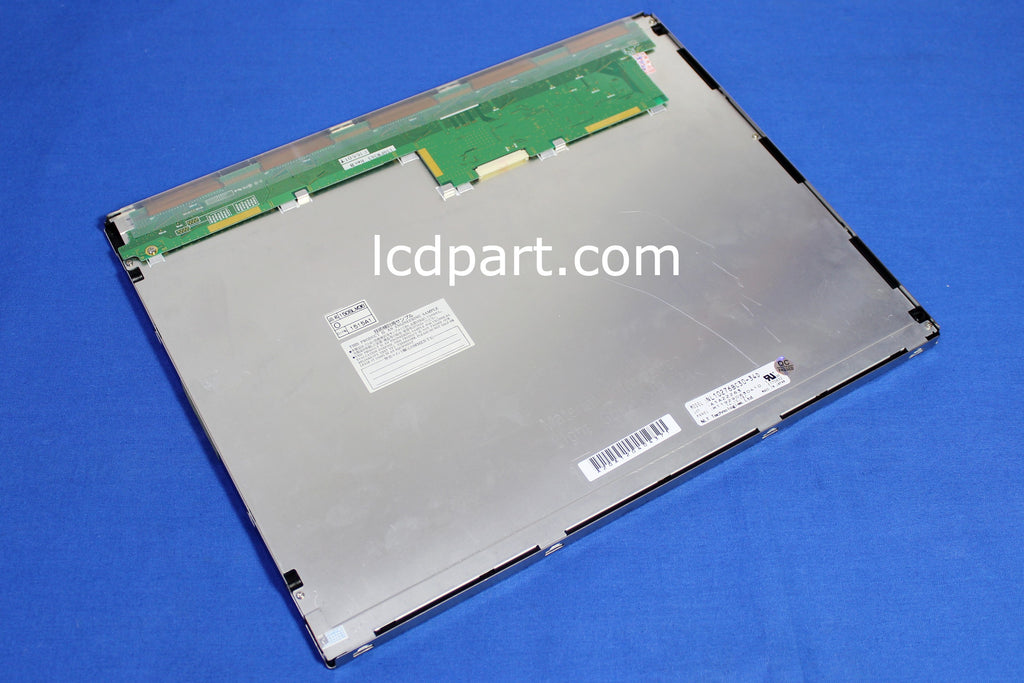

NL10276BC30-34D, 15 inch NEC LCD screen


Price:
$219.99

Description

Refurbished NEC NL10276BC30-34D. 90 days warranty.
NEC NL10276BC30-34D, one of the most popular LCD screens in control industrial and medical applications. This 15 inch NEC NL10276BC30-34D is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 400 nits (based on its datasheet). By upgrading to our LSR3206011LED321R5L+MS534EXT LED kit, it can reach 1300 nits or higher.
MS534EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 90 days warranty.
General Specifications:
Item Unit Specifications (Box4)
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.128(H) X 228.096(V)
Outline dimension [mm] 326.5(W) X 253.5(H) x 12.0(D)
Bolt Hole Dimension [mm] 224 X 176
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS(8-bit), P20, 6 Bit=H(3.3V), 8 Bit=O/NC
White Luminance [cd/m2] 400
Contrast Ratio 500:1
BackLight Connector SHR-12V-S, 12 pin, 1.0mm, 150LHS36
Backlight Inverter MS610UB/150PW02F
Response time, Rising msec 3
Response time, Falling msec 15
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS_1024X768-8Bit
LED Backlight kit LSR3206011LED321R5L+MS534EXT
Direct Replacement LCD MS150RSBDF1420D1
