Description

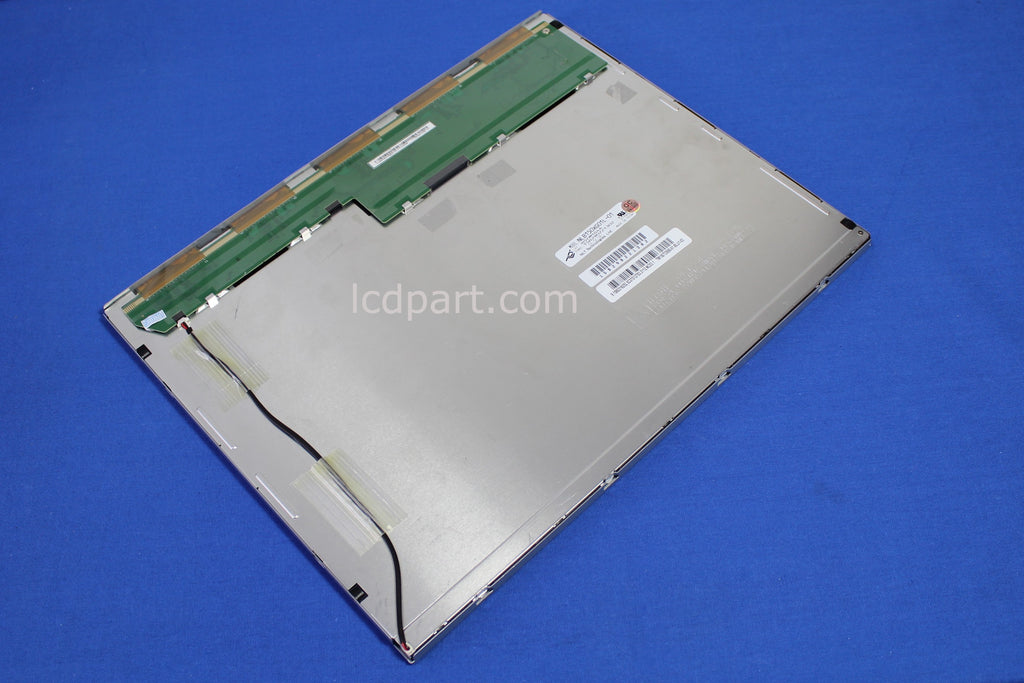

This refurbished TIANMA NLB150XG01L-01 LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
TIANMA NLB150XG01L-01, one of the most popular LCD screens in control industrial and medical applications. This 15 inch TIANMA NLB150XG01L-01 is originally equipped with its manufacturer's LED back light strip with built-in LED driver, which has typically 450 nits (based on its datasheet). By upgrading to our SB44318X11R5+MS640EX LED kit, it can reach 1300 nits or higher.
MS640EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 90 days warranty.
How to Connect
LED upgrade kit for TIANMA NLB150XG01L-01, is Listed below
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 15 |
Native Resolution | 1024 X 768 | |
Active Area | [mm] | 304.128(H) X 228.096(V) |
Outline dimension | [mm] | 326.5(W) X 253.5(H) X 13.1(D) |
Bolt Hole Dimension | [mm] | 176 X 224 |
Input Voltage VDD | [Volt] | 3.3V |
Screen Wire Harness | DF14-20P-1LVDS | |
Electrical Interface | LVDS (6bit) | |
White Luminance | [cd/m2] | 350 |
Contrast Ratio | 800:1 | |
Backlight Connector | H208K-P05N-02B, 1.25mm 5P(MS542EXT) | |
Backlight Inverter | P1=+12V, P2=GND, P3=ENA, P4=PWM, P5=N/C | |
Response time, Rising | msec | 5.7 |
Response time, Falling | msec | 2.3 |
Viewing Angle - Horizontal | degree | 80 |
Viewing Angle - Vertical | degree | 80 |
Compatible with | MS150RMS542EXTDF1420D16B | |
LCD controller kit | DF14-20P-1LVDS_1024X768-6Bit | |
LED Backlight kit | SB44318X11R5+MS640EXT | |
Direct Replacement LCD | MS150RSBDF1420D1 |
