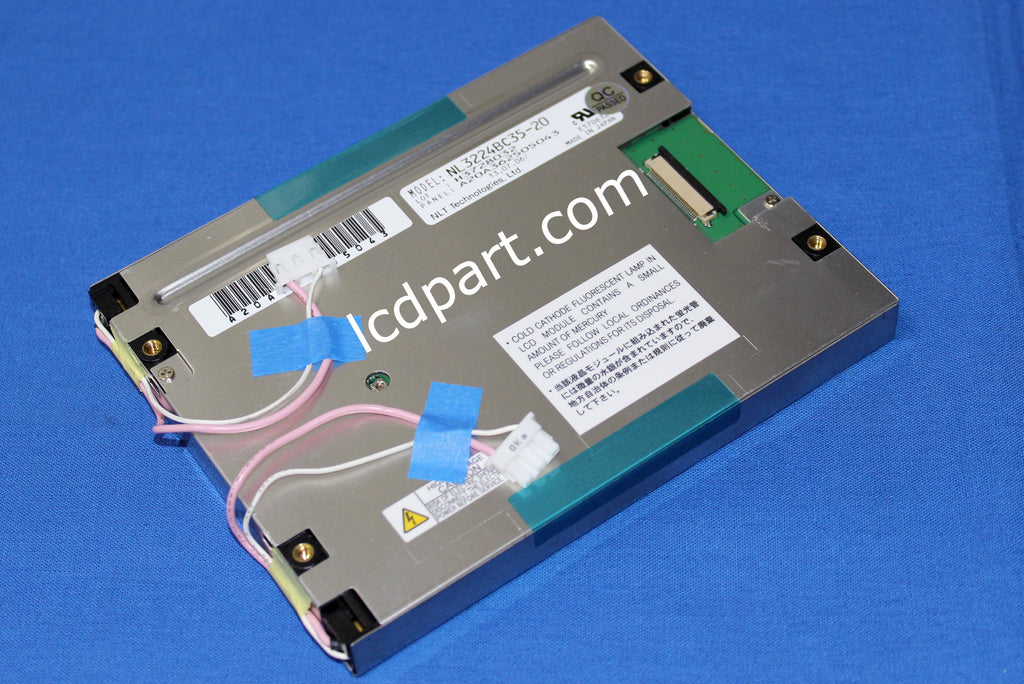

NL3224BC35-20, 5.5 inch NEC LCD screen



Refurbished NEC NL3224BC35-20 (like new condition). 90 days warranty.
NEC NL3224BC35-20, one of the most popular LCD panels in an industrial application. This 5.5 inch NEC NL3224BC35-20 originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our NL3224BC35-20-LEDKIT is the best option(LED Upgrade kit for NEC NL3224BC35-20 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 5.5
Native Resolution 320X240 or 640 X 480
Active Area [mm] 111.4(H) X 83.5(V)
Outline dimension [mm] 134.0(W) X 104.5(H) x 12.5(D)
Bolt Hole Dimension [mm] 60 X 60
Input Voltage VDD [Volt] 3.3/5.0V
Screen Wire Harness TTL-FFC05-31
Electrical Interface TTL
White Luminance [cd/m2] 300
Contrast Ratio 400:1
BackLight Connector BHR-03VS-1X2, 55LHS11
Backlight Inverter 55PW131
Response time, Rising msec 3
Response time, Falling msec 10
Viewing Angle - Horizontal degree 65
Viewing Angle - Vertical degree 65
LCD controller kit
LED Backlight kit NL3224BC35-20-LEDKIT
