NL6448AC20-06 6.5 inch NEC LCD screen


Price:
$219.99

Description

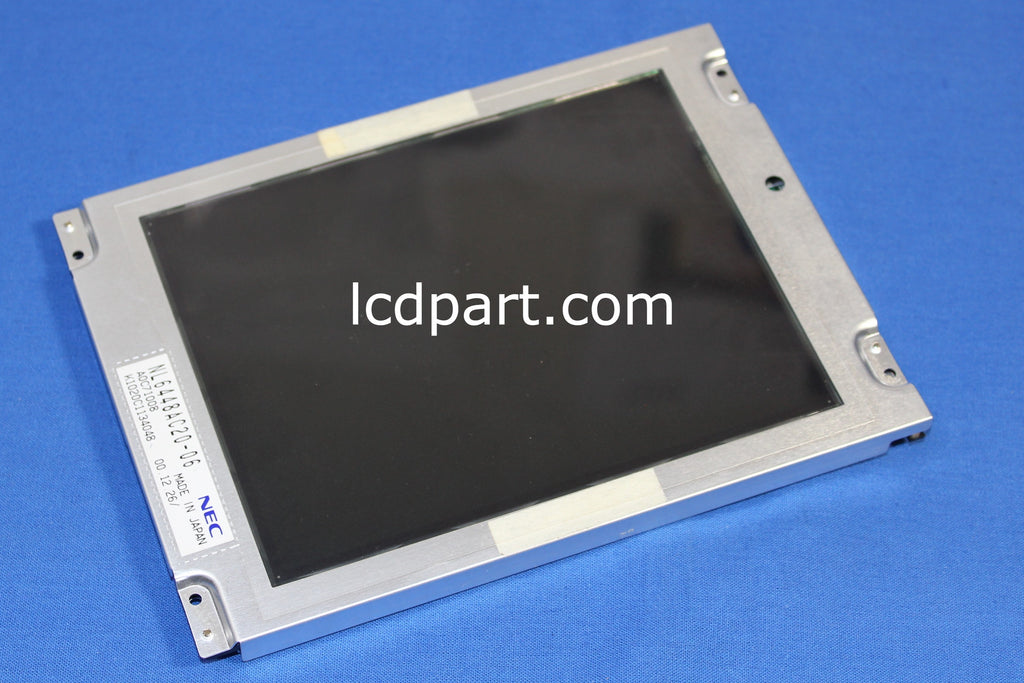

Refurbished (like new condition) NEC NL6448AC20-06. 90 days warranty.

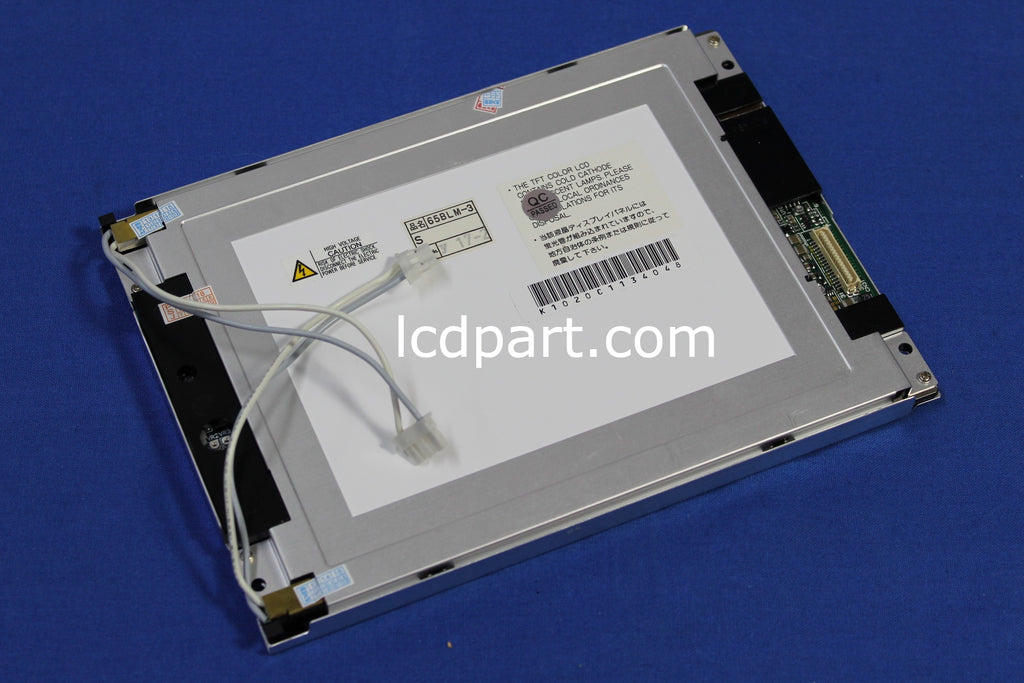

NEC NL6448AC20-06, one of the most popular LCD panels in an industrial application. This 8.4 inch NEC NL6448AC20-06 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB35160LED3220X2+MS610UB+DISENA LED kit is the best option(LED Upgrade kit for NEC NL6448AC20-06 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 6.5
Native Resolution 640 X 480
Active Area [mm] 132.48(H) X 99.36(V)
Outline dimension [mm] 178.8(W) X 126.8(H) X 11.0(D)
Bolt Hole Dimension [mm] 96 X 98
Input Voltage VDD [Volt] 5V
Screen Wire Harness TTL-DF9-31-2829
Electrical Interface TTL
White Luminance [cd/m2] 200
Contrast Ratio 150:1
BackLight Connector BHR-03VS-1X2, 65LHS-3L
Backlight Inverter 65PPW061, , MS578PW
Response time, Rising msec N/A
Response time, Falling msec 40(tr+tf)
Viewing Angle - Horizontal degree 50
Viewing Angle - Vertical degree 45
LCD controller kit TTL-DF9-31_640X480
LED Backlight kit UB35160LED3220X2+MS610UB+DISENA
