Description

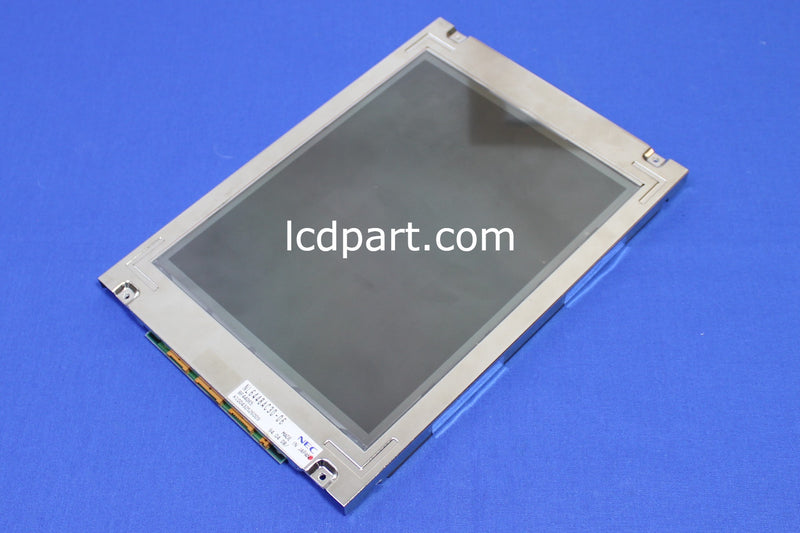

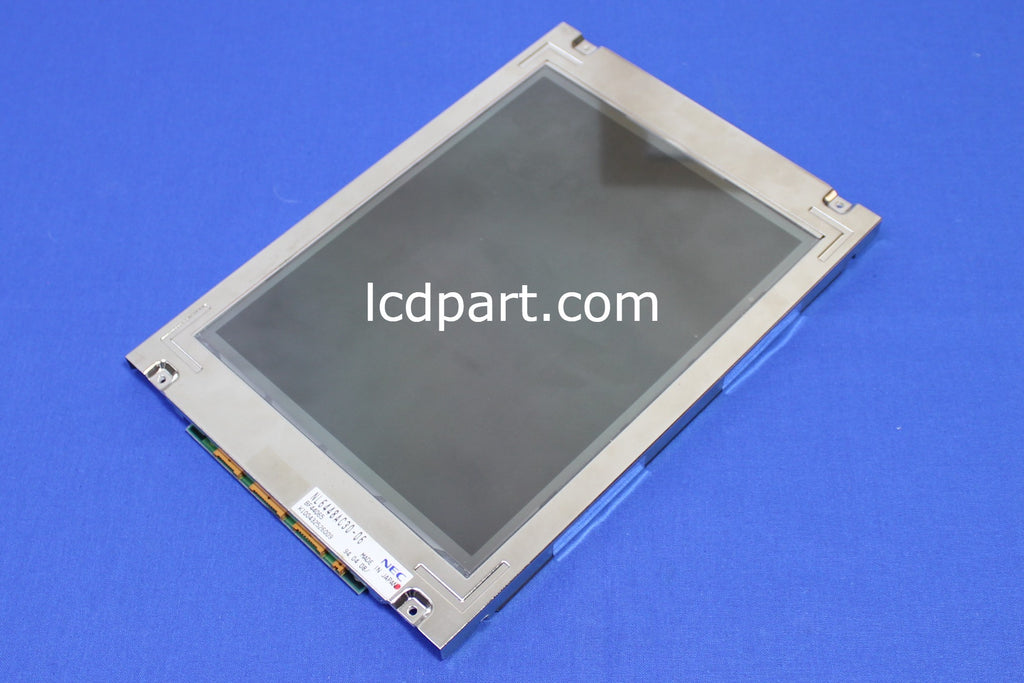

NEC NL6448AC30-06 is a very old LCD screen that is discontinued (obsolete). However, NEC NL6448AC30-06 is still available on the worldwide web. The condition of NEC NL6448AC30-06 varies widely. Such as are listed as new, good, used and refurbished. Unfortunately, because of its age. NEC NL6448AC30-06 is NOT RELIABLE at all. NEC NL6448AC30-06 will cause all kinds of problems in a short time period after replacement.
By analyzing the failure of old NEC NL6448AC30-06, our engineers had come up with a better solution. Which is a much more dependable replacement for NEC NL6448AC30-06 (Part Number is MS094RUBILZ34D1). We ship worldwide.
General Specifications:
Item | Unit | Specifications (C15) |
Screen Size | [inch] | 9.4 |
Native Resolution | 640 X 480 | |
Active Area | [mm] | 192.0 X 144.0 |
Outline dimension | [mm] | 259.5(W) X 179.0(H) x 12.5(D) |
Bolt Hole Dimension | [mm] | 142.0 X 142.0 |
Input Voltage VDD | [Volt] | 5V |
Screen Wire Harness | N/A | |
Electrical Interface | TTL (4=bit) | |
White Luminance | [cd/m2] | 90 |
Contrast Ratio | N/A | |
BackLight Connector | N/A | |
Backlight Inverter | HBL015 | |
Response time, Rising | msec | N/A |
Response time, Falling | msec | 40 |
Viewing Angle - Horizontal | degree | N/A |
Viewing Angle - Vertical | degree | N/A |
