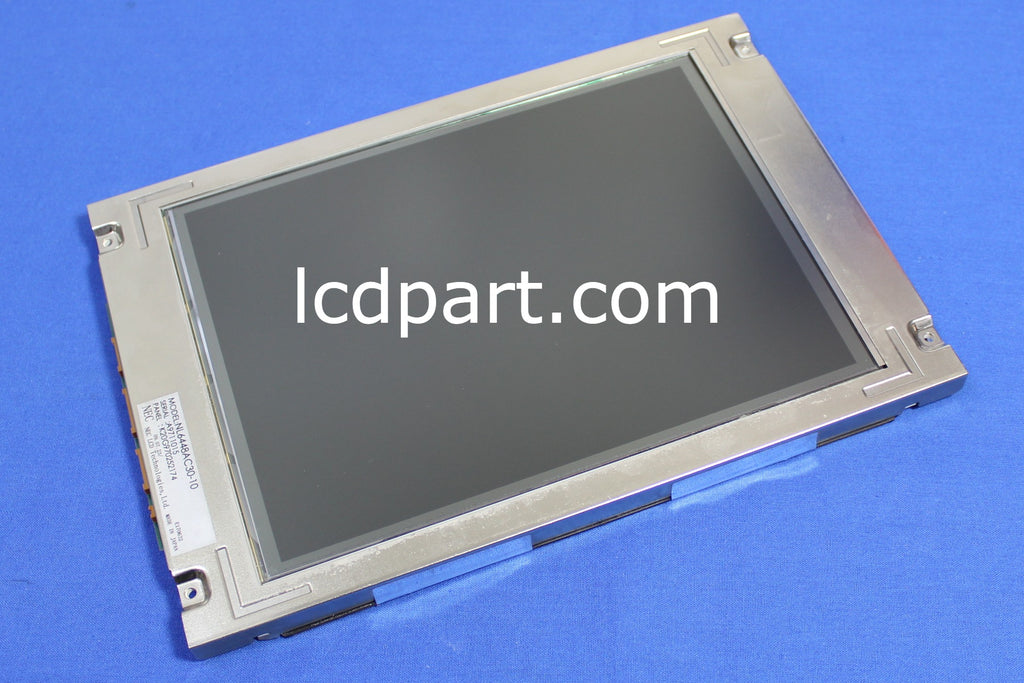

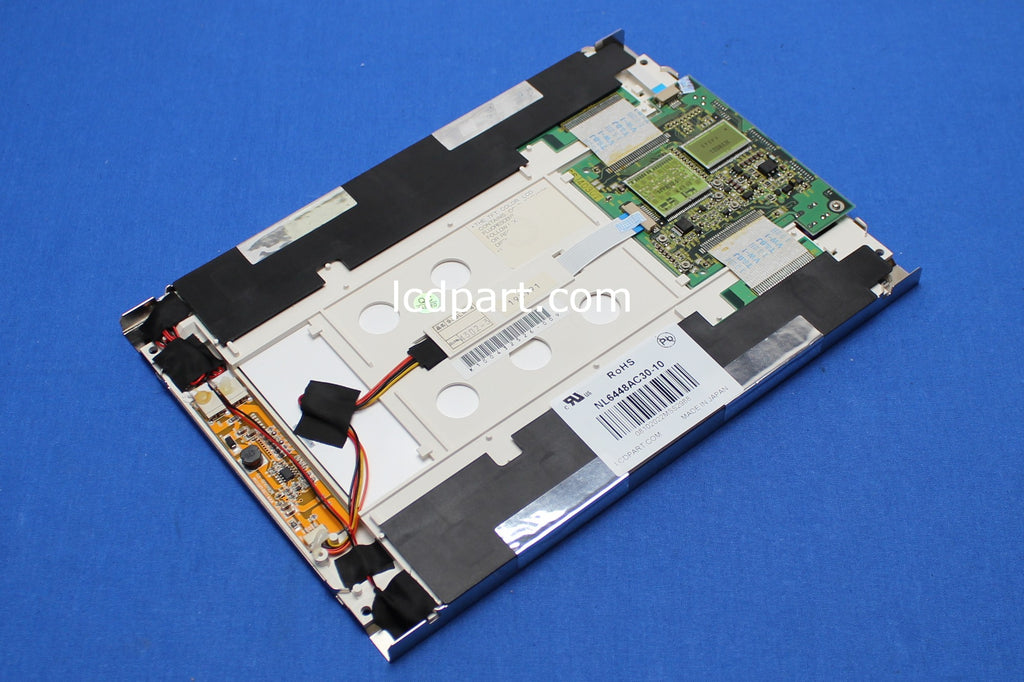

NEC NL6448AC30-10 is a very old LCD screen that is discontinued (obsolete). However, NEC NL6448AC30-10 is still available on the worldwide web. The condition of NEC NL6448AC30-10 varies widely. Such as are listed as new, good, used and refurbished. Unfortunately, because of its age. NEC NL6448AC30-10 is NOT RELIABLE at all. NEC NL6448AC30-10 will cause all kinds of problems in a short time period after replacement.
By analyzing the failure of old NEC NL6448AC30-10, our engineers had come up with a better solution. Which is a much more dependable replacement for NEC NL6448AC30-10 (Part Number is MS094RUBILZ34D1). We ship worldwide.
General Specifications:
Item Unit Specifications (C15)
Screen Size [inch] 9.4
Native Resolution 640 X 480
Active Area [mm] 192.0 X 144.0
Outline dimension [mm] 259.5(W) X 179.0(H) x 12.5(D)
Bolt Hole Dimension [mm] 142.0 X 142.0
Input Voltage VDD [Volt] 5V
Screen Wire Harness N/A
Electrical Interface TTL (4=bit)
White Luminance [cd/m2] 90
Contrast Ratio N/A
BackLight Connector N/A
Backlight Inverter HBL015
Response time, Rising msec N/A
Response time, Falling msec 40
Viewing Angle - Horizontal degree N/A
Viewing Angle - Vertical degree N/A
