Description

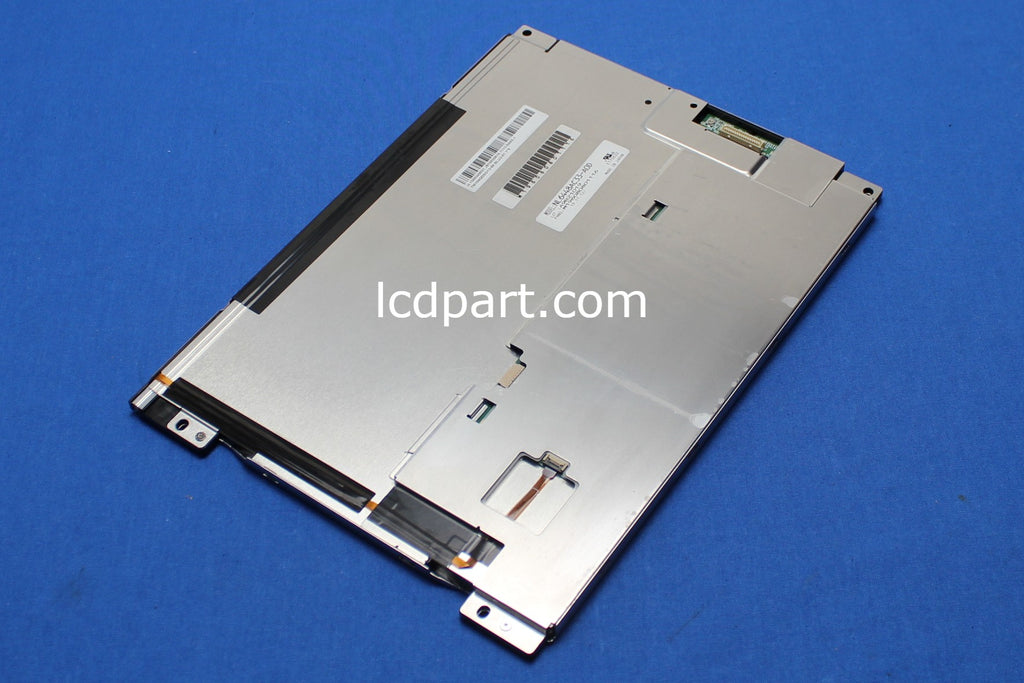

Refurbished NEC NL6448AC33-A0D LCD Screen. 90 days warranty.
General Specifications:
| Item | Unit | Specifications |
| Screen Size | [inch] | 10.4 |
| Native Resolution | 640 X 480 | |
| Active Area | [mm] | 211.2(H) X 158.4(V) |
| Outline dimension | [mm] | 246.5(W) X 179.4(H) x 9.5(D) |
| Bolt Hole Dimension | [mm] | 132.6 X 166.6 |
| Input Voltage VDD | [Volt] | 3.3/5.0V |
| Screen Wire Harness | TTL-DF9-31-2829 | |
| Electrical Interface | TTL | |
| White Luminance | [cd/m2] | 500 |
| Contrast Ratio | 900:1 | |
| LED Connector | Similar MS572EXT | |
| Backlight Inverter | P5/P6=+12V, P3/P4=GND, P1=ADJ, P2=N/C | |
| Response time, Rising | msec | 3 |
| Response time, Falling | msec | 15 |
| Viewing Angle - Horizontal | degree | 80 |
| Viewing Angle - Vertical | degree | 80 |
| LCD controller kit | TTL-DF9-31_640X480 |
