Description
Refurbished (Like new condition) NEC NL6448BC20-21D LCD Screen. 90 days warranty.

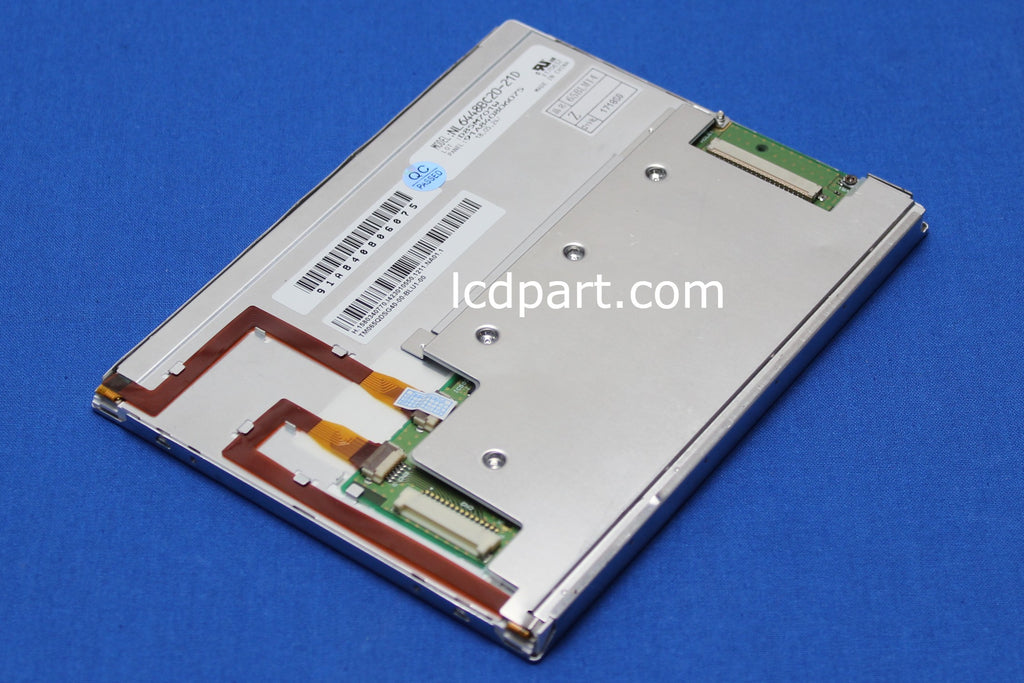

NEC NL6448BC20-21D, one of the most popular LCD screen in an industrial control application. This 6.5 inch NEC NL6448BC20-21D is originally equipped with LED backlight.
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 6.5 |
Native Resolution | 640 X 480 | |
Active Area | [mm] | 132.48(H) X 99.36(V) |
Outline dimension | [mm] | 153.0(W) X 118.0(H) X 9.0(D) |
Bolt Hole Dimension | [mm] | 59 X 59 |
Input Voltage VDD | [Volt] | 3.3V |
Screen Wire Harness | DF14-20P-1LVDS-R | |
Electrical Interface | LVDS (6-bit/8-bit)P18 | |
White Luminance | [cd/m2] | 550 |
Contrast Ratio | 600:1 | |
BackLight Connector | DF14A-15P-1.25H, 65LHS14 | |
Backlight Inverter | 26.82V/10ma/6 strings | |
Response time, Rising | msec | 6 |
Response time, Falling | msec | 19 |
Viewing Angle - Horizontal | degree | 80 |
Viewing Angle - Vertical | degree | 80 |
