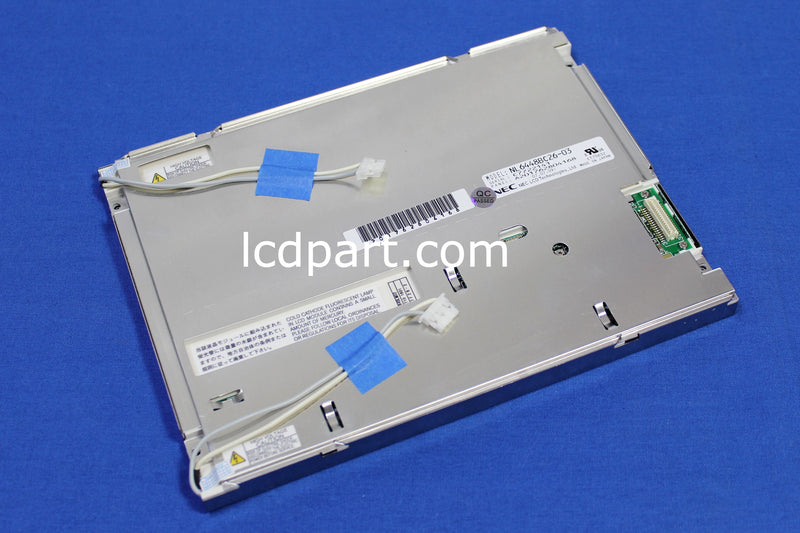

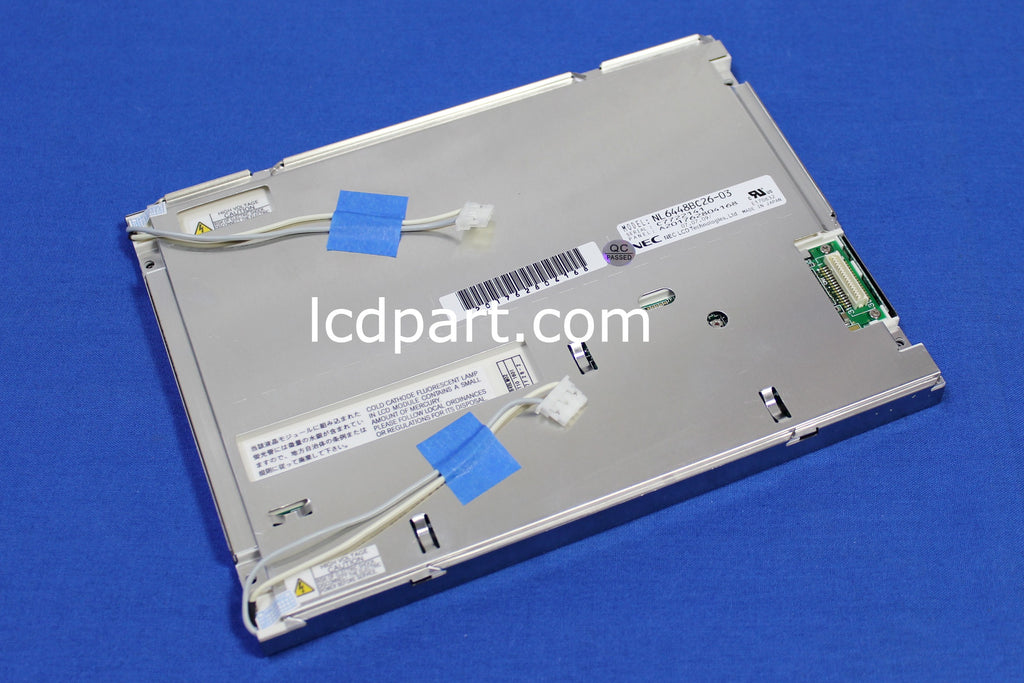

This refurbished NEC NL6448BC26-01. LCD screen has been tested and replaced with our new CCFL back light lamps, new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
NEC NL6448BC26-01, one of the most popular LCD panels in an industrial application. This 8.4 inch NEC NL6448BC26-01 is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB35185LED3515X2+MS610UB LED kit is the best option(LED Upgrade kit for NEC NL6448BC26-01 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 8.4 |
Native Resolution | 640 X 480 | |
Active Area | [mm] | 170.9(H) X 128.2(V) |
Outline dimension | [mm] | 200.0(W) X 150.2(H) x 12.0(D) |
Bolt Hole Dimension | [mm] | 112 X 112 |
Input Voltage VDD | [Volt] | 3.3/5.0V |
Screen Wire Harness | TTL-DF9-31-2829 | |
Electrical Interface | TTL (6-bit) | |
White Luminance | [cd/m2] | 450 |
Contrast Ratio | 500:1 | |
BackLight Connector | BHR-03VS-1X2, 84LHS01 | |
Backlight Inverter | 65PWB31 +5V | |
Response time, Rising | msec | 10 |
Response time, Falling | msec | 25 |
Viewing Angle - Horizontal | degree | 70 |
Viewing Angle - Vertical | degree | 55 |
LCD controller kit | TTL-DF9-31_640X480 | |
LED Backlight kit | UB35185LED3515X2+MS610UB |
