NL6448BC26-08D


Price:
$259.99

Description

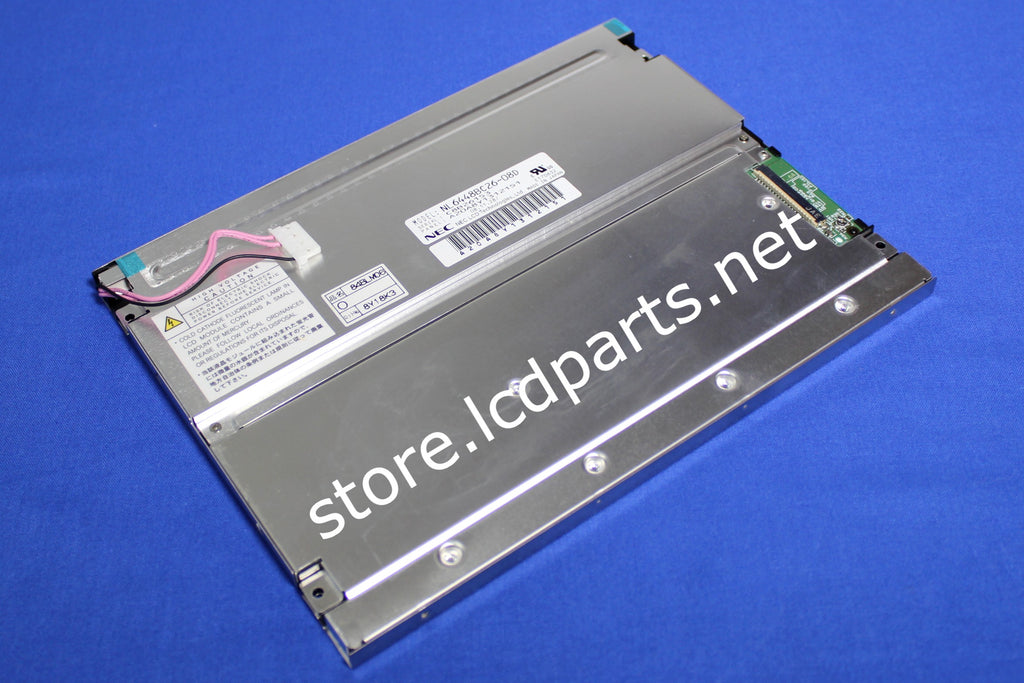

Refurbished (like new condition) NEC NL6448BC26-08D. 90 days warranty.

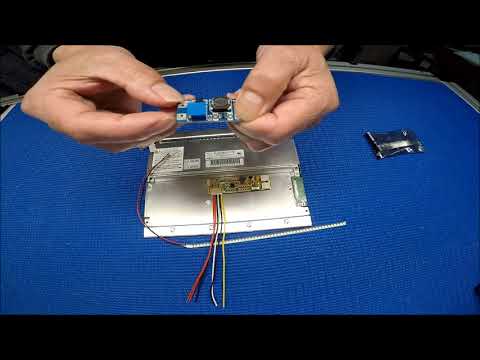

NEC NL6448BC26-08D, one of the most popular LCD panels in an industrial application. This 8.4 inch NEC NL6448BC26-08D is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB Series LED kit is the best option(LED Upgrade kit for NEC NL6448BC26-08D is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 8.4
Native Resolution 640 X 480
Active Area [mm] 170.88(H) X 128.16(V)
Outline dimension [mm] 200.0(W) X 150.2(H) x 10.5(D)
Bolt Hole Dimension [mm] 112 X 112
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS-R
Electrical Interface LVDS (6-bit)
White Luminance [cd/m2] 400
Contrast Ratio 800:1
BackLight Connector BHR-04VS-1X1, 84LHS06
Backlight Inverter 84PW031, 84PW041, +5V
Response time, Rising msec 10
Response time, Falling msec 10
Viewing Angle - Horizontal degree 85
Viewing Angle - Vertical degree 85
LCD controller kit DF14-20P-1LVDS-R_640X480
LED Backlight kit 84LHS-LED
