Description

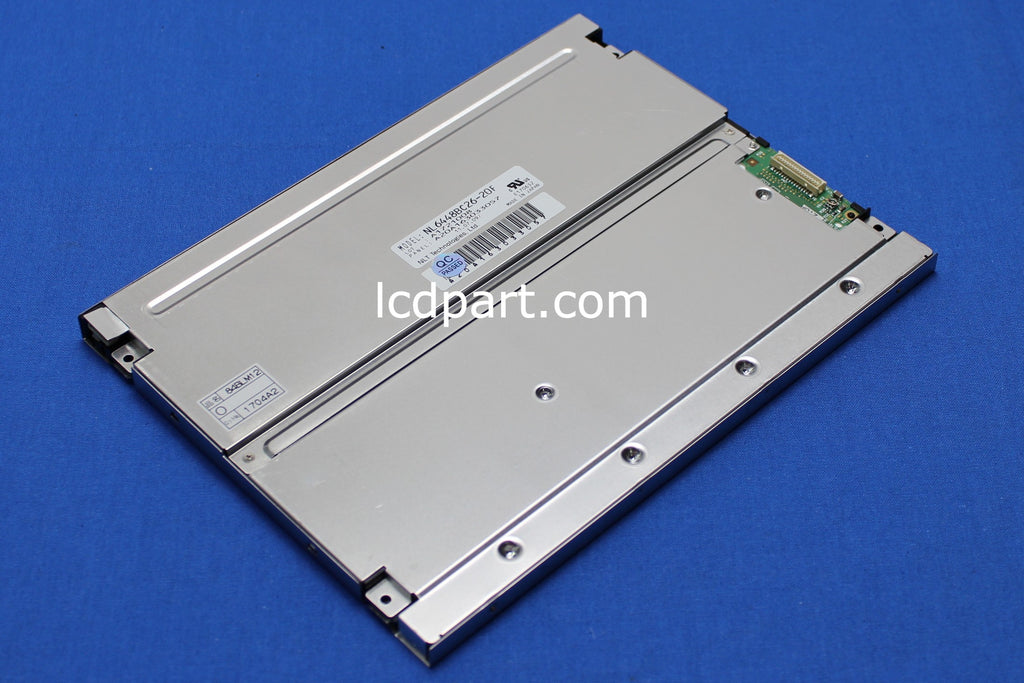

This refurbished NEC NL6448BC26-22F LCD screen has been tested and replaced with the new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions! 90 days warranty
NEC NL6448BC26-22F, one of the most popular LCD screens in control of industrial and medical applications. This 8.4 inch NEC NL6448BC26-22F is originally equipped with its manufacturer's LED backlight strip and drive by external LED driver, which has typically 800 nits (based on its datasheet). By upgrading to our 84LHS-LED kit, it can reach 1600 nits or higher.
A wire connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for NEC NL6448BC26-22F is Listed below
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 8.4 |
Native Resolution | 640 X 480 | |
Active Area | [mm] | 170.88(H) X 128.16(V) |
Outline dimension | [mm] | 200.0(W) X 152.0(H) x 10.5(D) |
Bolt Hole Dimension | [mm] | 112 X 112 |
Input Voltage VDD | [Volt] | 3.3/5.0V |
Screen Wire Harness | TTL-DF9-31-2829 | |
Electrical Interface | TTL (6-bit) | |
White Luminance | [cd/m2] | 800 |
Contrast Ratio | 1000:1 | |
BackLight Connector | SHR-08V-S, 84LHS12 | |
Backlight Inverter | SHR-08V-S_27MAMS610UB2R7 | |
Response time, Rising | msec | 3 |
Response time, Falling | msec | 15 |
Viewing Angle - Horizontal | degree | 80 |
Viewing Angle - Vertical | degree | 80 |
LCD controller kit | TTL-DF9-31_640X480 | |
LED Backlight kit | 84LHS-LED |
