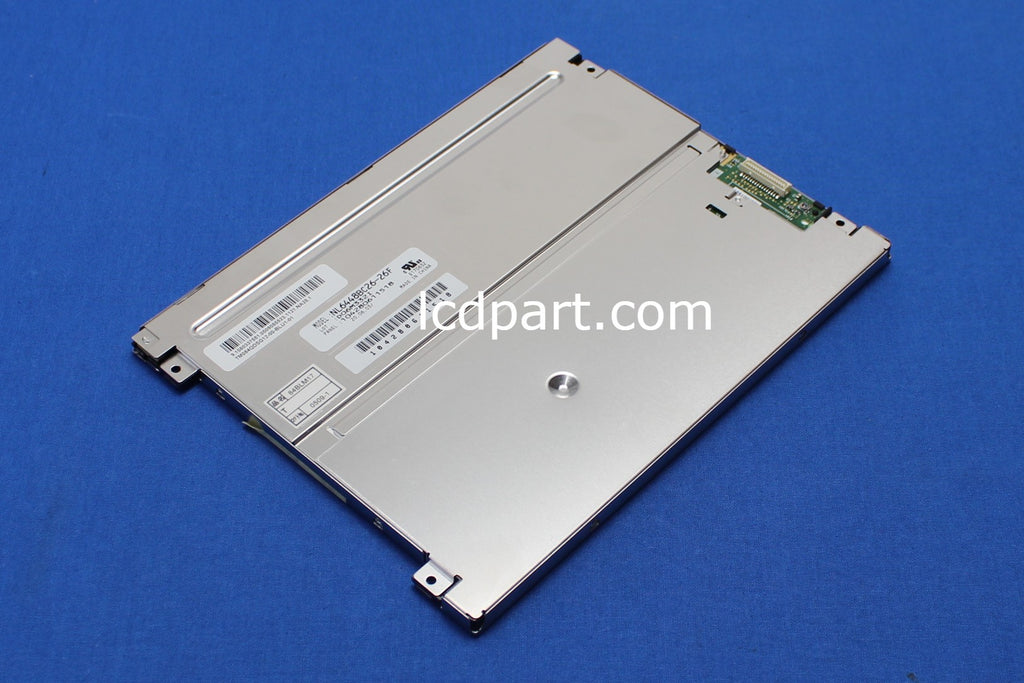

NL6448BC26-27F


Price:
$299.99

Description

Brand new NEC NL6448BC26-27F. 30 days money back guaranteed! 90 days warranty
NEC NL6448BC26-27F, one of the most popular LCD screens in control of industrial and medical applications. This 8.4 inch NEC NL6448BC26-27F is originally equipped with its manufacturer's LED backlight strip and drive by external LED driver, which has typically 800 nits (based on its datasheet). By upgrading to our 84LHS-LED kit, it can reach 1300 nits or higher.
A wire connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for NEC NL6448BC26-27F is Listed below
General Specifications:
Item Unit Specifications
Screen Size [inch] 8.4
Native Resolution 640 X 480
Active Area [mm] 170.88(H) X 128.16(V)
Outline dimension [mm] 200.0(W) X 152.0(H) x 8.2(D)
Bolt Hole Dimension [mm] 112 X 112
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS-R
Electrical Interface LVDS (P4=(6BO/8BG)
White Luminance [cd/m2] 500
Contrast Ratio 1000:1
Backlight Connector SHR-08V-S, 84LHS17
Backlight Inverter 104PW03F
Response time, Rising msec 3
Response time, Falling msec 15
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit TTL-DF9-31_640X480
LED Backlight kit 84LHS-LED
