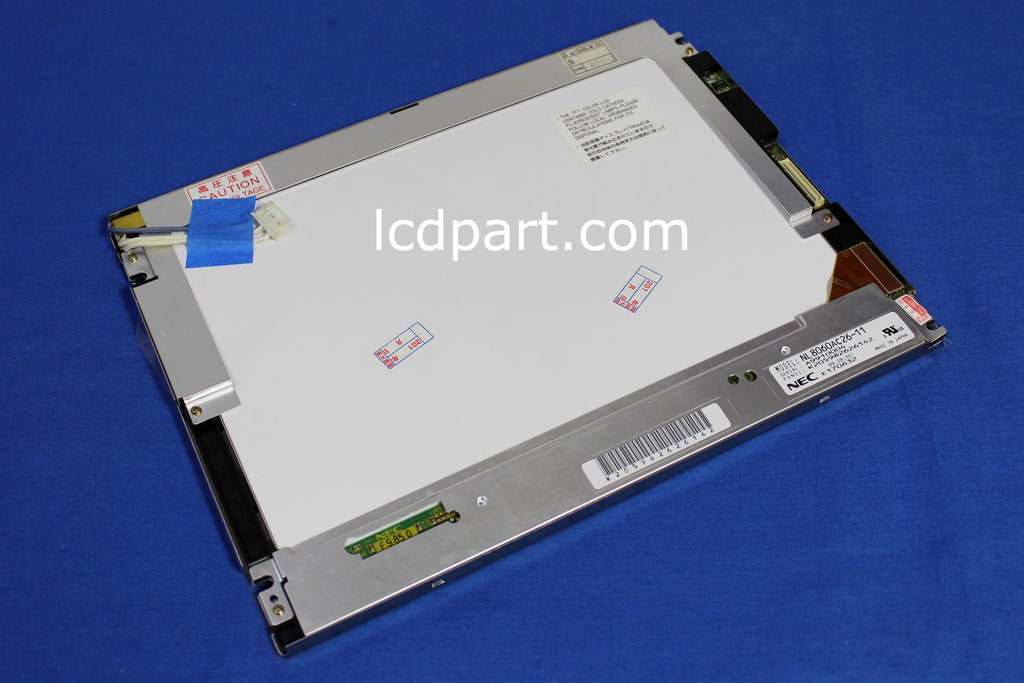

Refurbished (like new condition) NEC NL8060AC26-11 LCD Screen. 90 days warranty.
NEC NL8060AC26-11, one of the most popular LCD panels in an industrial application. This 12.1 inch NEC NL8060AC26-11 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB Series LED kit is the best option(LED Upgrade kit for NEC NL8060AC26-11 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
|Native Resolution||800 X 600|
|Active Area||[mm]||211.2(H) X 158.4(V)|
|Outline dimension||[mm]||243.0(W) X 185.1(H) x 10.5(D)|
|Bolt Hole Dimension||[mm]||132.6 X 166.6|
|Input Voltage VDD||[Volt]||3.3/5V|
|Screen Wire Harness||TTL-DF9-41-3940|
|Electrical Interface||TTL (6-bit)|
|BackLight Connector||BHR-03VS-1X1, 104LHS17L|
|Response time, Rising||msec||40|
|Response time, Falling||msec||N/A|
|Viewing Angle - Horizontal||degree||45|
|Viewing Angle - Vertical||degree||45|
|LCD controller kit||TTL-DF9-41_800X600|
|LED Backlight kit||104LHS-LED|
