NL8060BC21-02


Price:
$259.99

Description

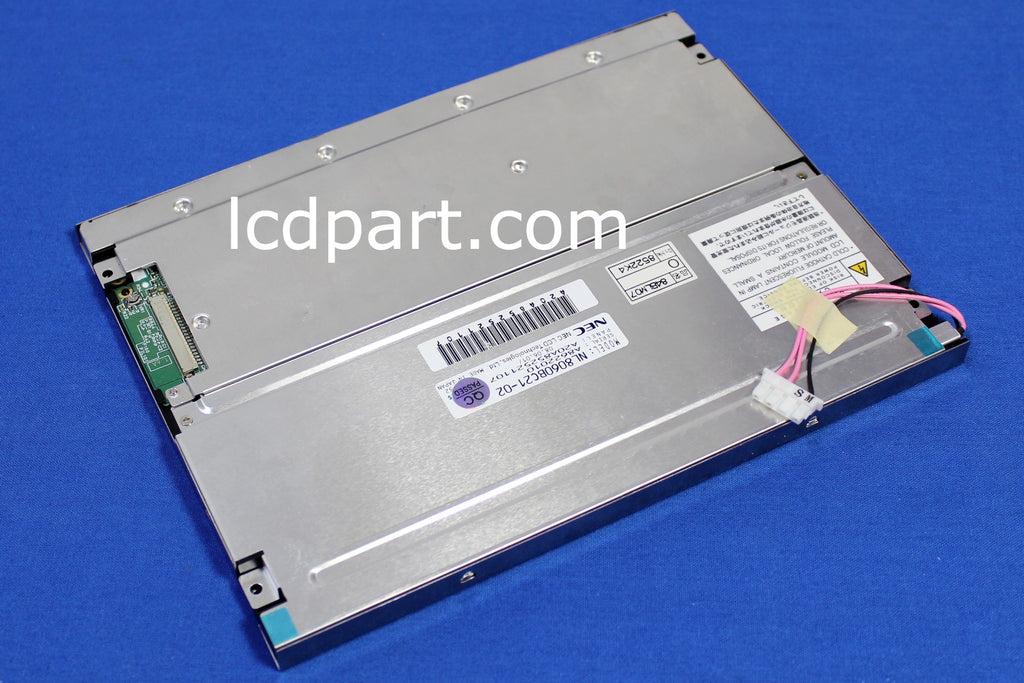

Refurbished (like new condition) NEC NL8060BC21-02. 90 days warranty.

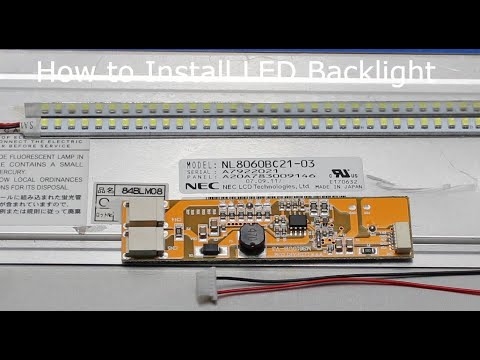

NEC NL8060BC21-02, one of the most popular LCD panels in an industrial application. This 8.4 inch NEC NL8060BC21-02 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB Series LED kit is the best option(LED Upgrade kit for NEC NL8060BC21-02 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.

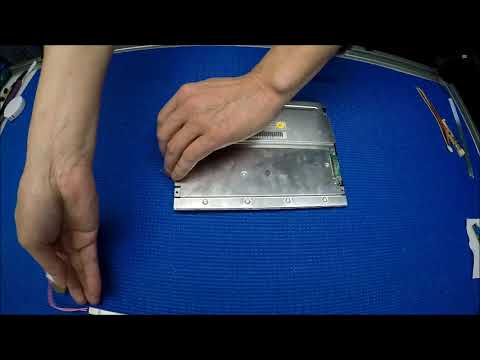

Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 8.4
Native Resolution 800 X 600
Active Area [mm] 170.4(H) X 127.8(V)
Outline dimension [mm] 200.0(W) X 150.2(H) x 10.5(D)
Bolt Hole Dimension [mm] 112 X 112
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS-R
Electrical Interface LVDS (6-bit)
White Luminance [cd/m2] 400
Contrast Ratio 500:1
BackLight Connector BHR-04VS-1X1, N/A
Backlight Inverter 84PW031, 84PW041, +5V
Response time, Rising msec 9
Response time, Falling msec 16
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS-R_800X600
LED Backlight kit 84LHS-LED
