Description
New NEC NL8060BC26-27. 90 days warranty

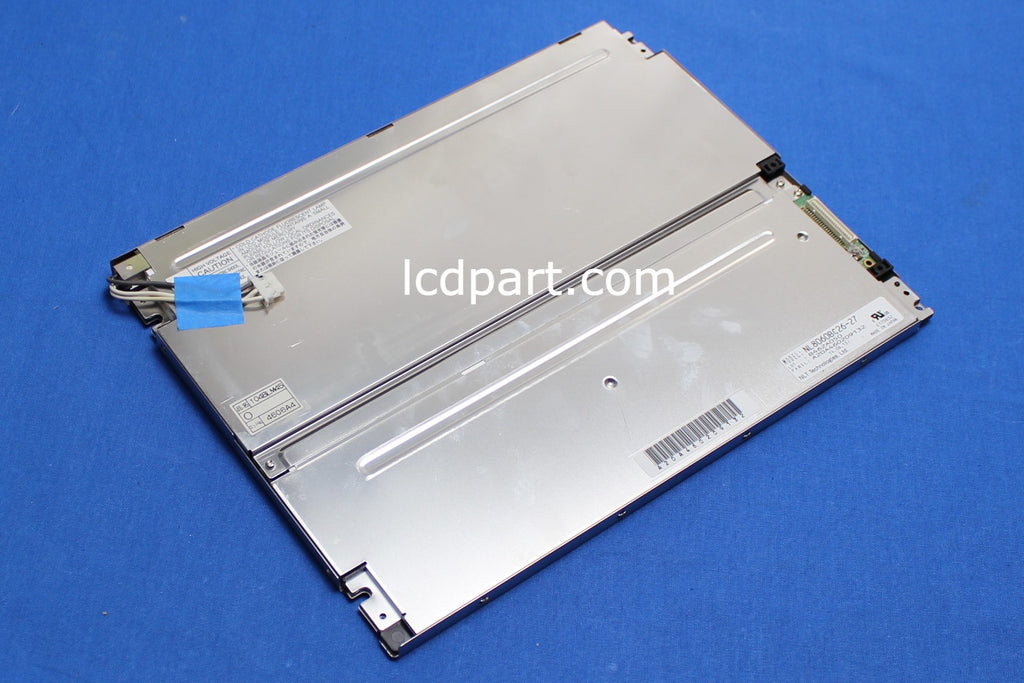

NEC NL8060BC26-27, one of the most popular LCD panels in an industrial application. This 10.4 inch NEC NL8060BC26-27 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our LSR Series LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
MS534EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it!
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 10.4 |
Native Resolution | 800 X 600 | |
Active Area | [mm] | 211.2(H) X 158.4(V) |
Outline dimension | [mm] | 243.0(W) X 185.1(H) x 10.5(D) |
Bolt Hole Dimension | [mm] | 132.6 X 166.6 |
Input Voltage VDD | [Volt] | 3.3/5.0V |
Screen Wire Harness | TTL-DF9-41 | |
Electrical Interface | TTL | |
White Luminance | [cd/m2] | 400 |
Contrast Ratio | 700:1 | |
Backlight Connector | BHR-03VS-1X1, 104LHS39 | |
Backlight Inverter | 104PW161 | |
Response time, Rising | msec | 25 |
Response time, Falling | msec | 25 |
Viewing Angle - Horizontal | degree | 85 |
Viewing Angle - Vertical | degree | 85 |
LCD controller kit | TTL-DF9-41_800X600 | |
LED Backlight kit | LSRSB44220X12R+MS534EXT |
