NL8060BC26-28


Price:
$219.99

Description

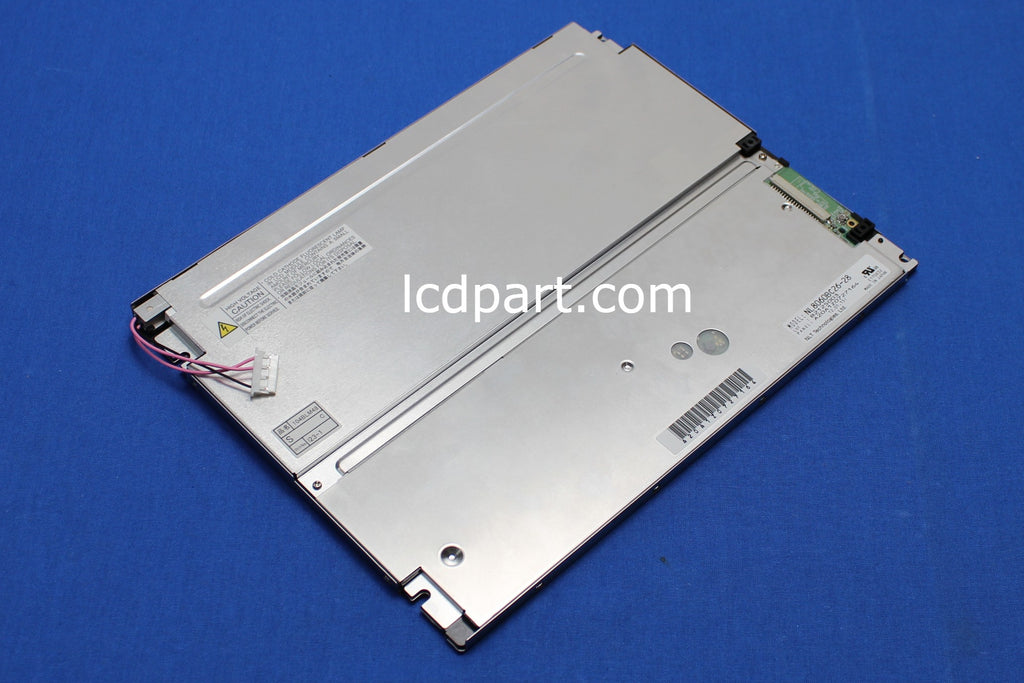

This refurbished NEC NL8060BC26-28 LCD screen has been tested and replaced with our new CCFL backlight lamps, new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty

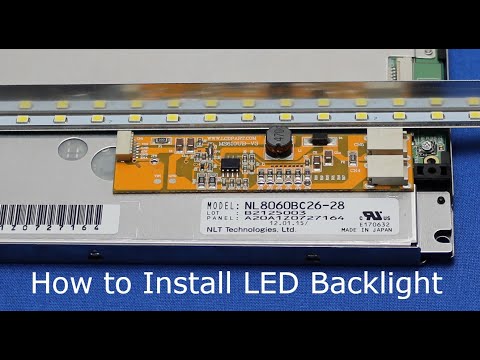

NEC NL8060BC26-28, one of the most popular LCD panels in an industrial application. NEC NL8060BC26-28 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our 104LHS-LED is the best option(LED Upgrade kit for NEC NL8060BC26-28 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 800 X 600
Active Area [mm] 211.2(H) X 158.4(V)
Outline dimension [mm] 243.0(W) X 185.1(H) x 10.5(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS_R
Electrical Interface LVDS (6-bit)
White Luminance [cd/m2] 400
Contrast Ratio 700:1
BackLight Connector BHR-04VS-1X1, 104LHS46
Backlight Inverter 104PW201
Response time, Rising msec 25
Response time, Falling msec 25
Viewing Angle - Horizontal degree 85
Viewing Angle - Vertical degree 85
LCD controller kit DF14-20P-1LVDS-R_800X600
LED Backlight kit 104LHS-LED
