NL8060BC26-35


Price:
$219.99

Description

New NL8060BC26-35. 30 days money back guaranteed! Like new conditions ! 90 days warranty

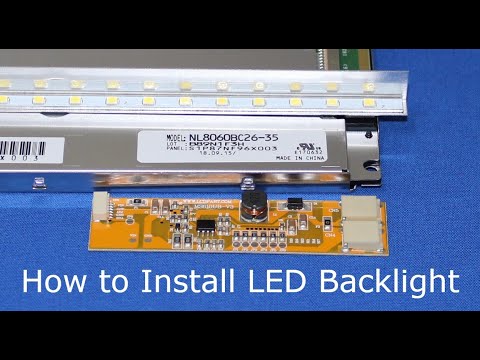

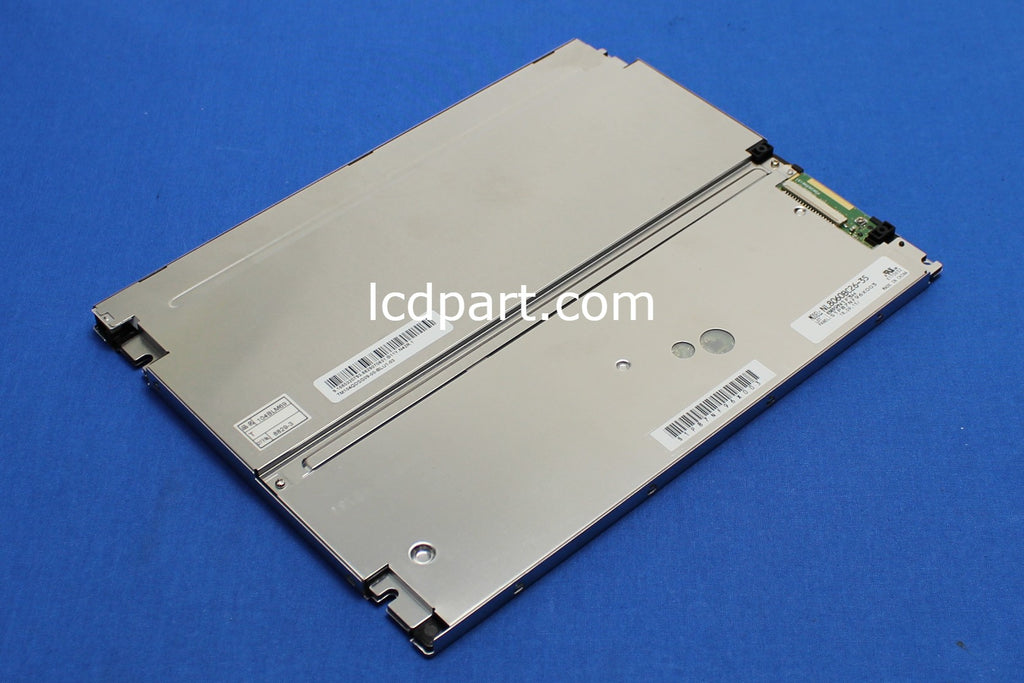

NEC NL8060BC26-35, one of the most popular LCD panels in an industrial application. NEC NL8060BC26-35 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our 104LHS-LED is the best option(LED Upgrade kit for NEC NL8060BC26-35 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 10.4
Native Resolution 800 X 600
Active Area [mm] 211.2(H) X 158.4(V)
Outline dimension [mm] 243.0(W) X 185.1(H) x 10.5(D)
Bolt Hole Dimension [mm] 132.6 X 166.6
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS_R
Electrical Interface LVDS (6-bit)
White Luminance [cd/m2] 400
Contrast Ratio 900:1
BackLight Connector SHR-08V-S
LED Driver 104PW03F, 3 strings, 18V, 50ma
Response time, Rising msec 3
Response time, Falling msec 15
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 80
LCD controller kit DF14-20P-1LVDS-R_800X600
LED Backlight kit 104LHS-LED
