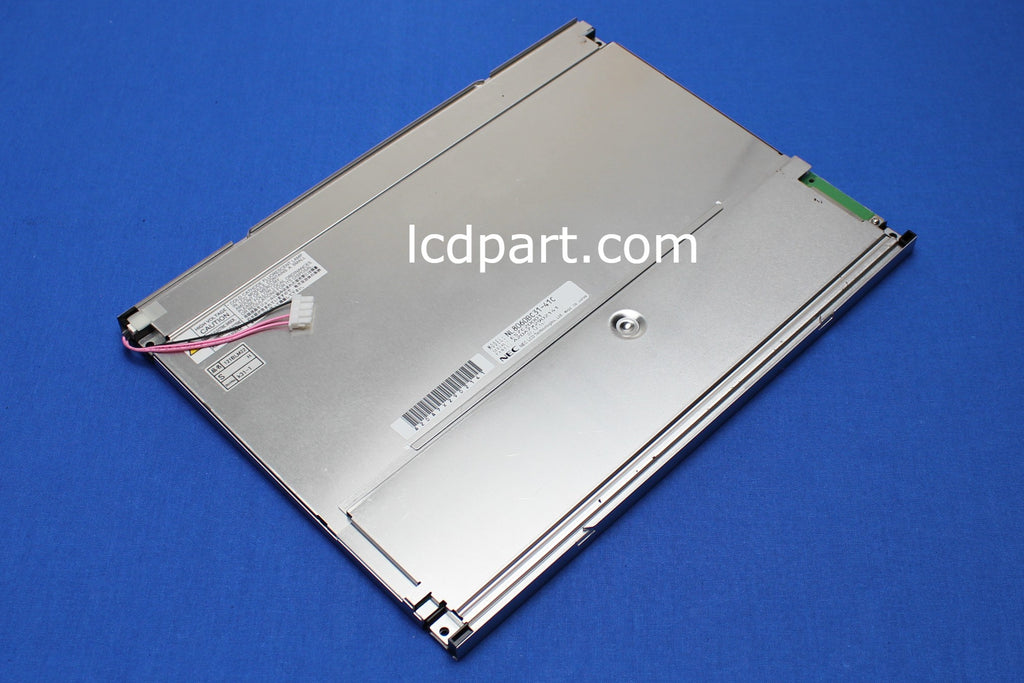

New NEC NL8060BC31-41C, 90 days warranty
NEC NL8060BC31-41C, one of the most popular LCD panels in an industrial application. This 12.1 inch NEC NL8060BC31-41C is originally equipped with dual CCFL back light lamps. To extend its life and improve its performance, upgrading it to our UB54255LED6420X1+MS610UB+MS623EXT LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
MS623EXT wire adapter is included. It is easy to Install! Anyone can do it!
LED upgrade kit for NEC NL8060BC31-41C is Listed below
|Native Resolution||800 X 600|
|Active Area||[mm]||246.0(H) X 184.5(V)|
|Outline dimension||[mm]||280.0(W) X 210.0(H) x 11.0(D)|
|Bolt Hole Dimension||[mm]||181.3 X 181.3|
|Input Voltage VDD||[Volt]||3.3V|
|Screen Wire Harness||DF14-20P-1LVDS-R|
|Electrical Interface||LVDS (6-bit)|
|BackLight Connector||BHR-04VS-1X1, 121LHS22|
|Response time, Rising||msec||6|
|Response time, Falling||msec||19|
|Viewing Angle - Horizontal||degree||80|
|Viewing Angle - Vertical||degree||80|
|LCD controller kit||DF14-20P-1LVDS-R_800X600|
|LED Back light kit||UB54255LED6420X1+MS610UB+MS623EXT|
