Description

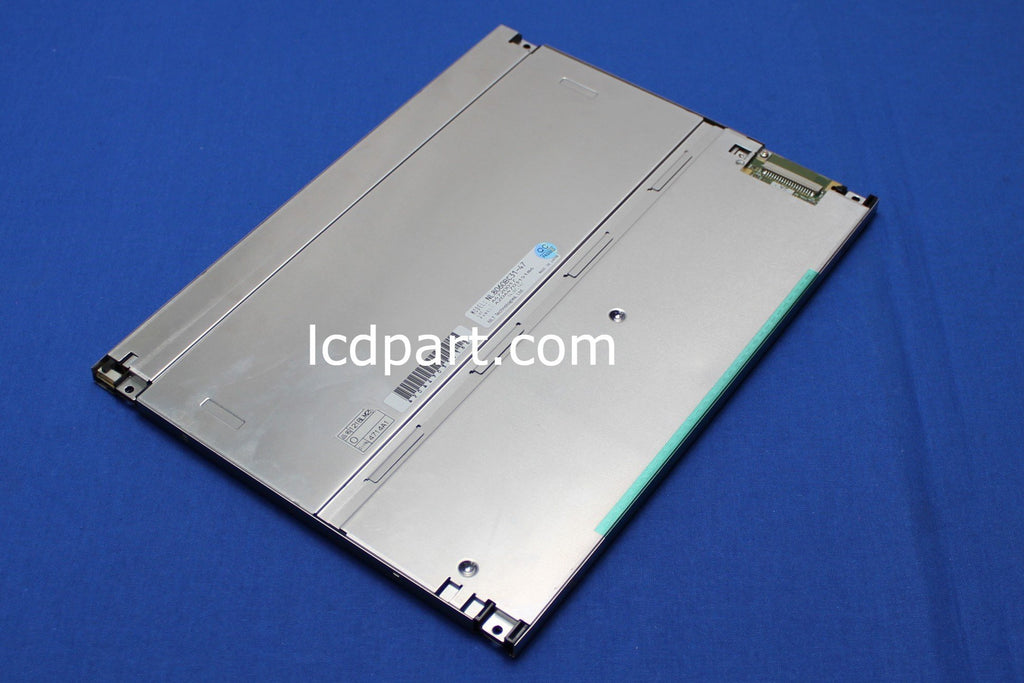

This refurbished NEC NL8060BC31-47D LCD screen has been tested and replaced with new polarize film. There are no scratches and no pressure marks on the screens. 30 days money back guaranteed! Like new conditions ! 90 days warranty
NL8060BC31-47D, one of the most popular LCD screens in control of industrial and medical applications. This 12.1 inch NEC NL8060BC31-47D is originally equipped with its manufacturer's LED backlight strip with built-in LED driver, which has typically 450 nits (based on its datasheet). By upgrading to our SB44255X11R7+MS534EXT LED kit, it can reach 1500 nits or higher.
A wire adapter is included. It is easy to Install! Anyone can do it!
LED upgrade kit for NEC NL8060BC31-47D is Listed below
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 12.1 |
Native Resolution | 800 X 600 | |
Active Area | [mm] | 246.0(H) X 184.5(V) |
Outline dimension | [mm] | 280.0(W) X 210.0(H) x 9.1(D) |
Bolt Hole Dimension | [mm] | 181.3 X 181.3 |
Input Voltage VDD | [Volt] | 3.3V |
Screen Wire Harness | DF14-20P-1LVDS-R | |
Electrical Interface | LVDS (6-bit) | |
White Luminance | [cd/m2] | 450 |
Contrast Ratio | 900:1 | |
Backlight Connector | SHR-08V-S, 121LHS29 | |
LED Driver | 121PW02F | |
Response time, Rising | msec | 3 |
Response time, Falling | msec | 15 |
Viewing Angle - Horizontal | degree | 80 |
Viewing Angle - Vertical | degree | 80 |
LCD controller kit | DF14-20P-1LVDS-R_800X600 | |
LED Back light kit | SB44255X11R7+MS534EXT |
