Description

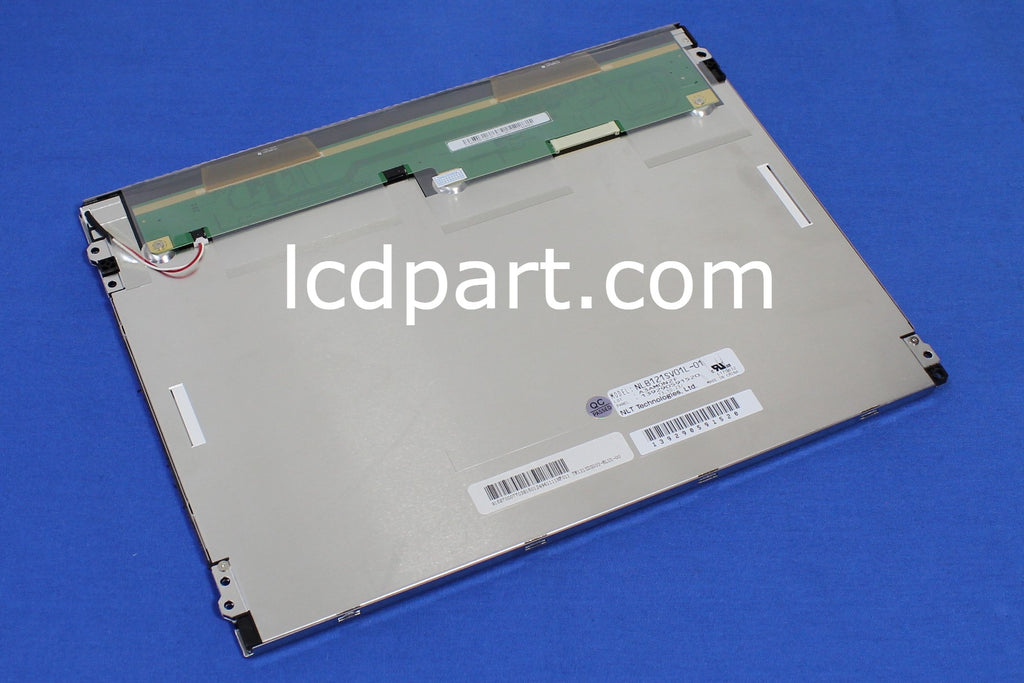

Refurbished 12.1 inch NLT NLB121SV01L-01 LCD screen. 90 days warranty.
NLT NLB121SV01L-01, one of the most popular LCD screens in control industrial and medical applications. This 12.1 inch NLT NLB121SV01L-01 is originally equipped with its manufacturer's LED back light strip with built-in LED driver, which has typically 450 nits (based on its datasheet). By upgrading to our SB44255X11R7+MS640EXT LED kit, it can reach 1300 nits or higher.
MS640EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it!
General Specifications:
Item | Unit | Specifications |
Screen Size | [inch] | 12.1 |
Native Resolution | 800 X 600 | |
Active Area | [mm] | 246.0(H) X 184.5(V) |
Outline dimension | [mm] | 279.0(W) X 209.0(H) X 9.0(D) |
Bolt Hole Dimension | [mm] | 166 (138) X 176 (185.8) |
Input Voltage VDD | [Volt] | 3.3V |
Screen Wire Harness | DF14-20P-1LVDS | |
Electrical Interface | LVDS (6bit/8bit) P4 | |
White Luminance | [cd/m2] | 450 |
Contrast Ratio | 700:1 | |
BackLight Connector | P24038P5, 1.25mm 5P(MS542EXT) | |
Backlight Inverter | P1=NC, P2=PWM, P3=ENA, P4=GND, P5=12V, P5=12V | |
Response time, Rising | msec | 2 |
Response time, Falling | msec | 5 |
Viewing Angle - Horizontal | degree | 80 |
Viewing Angle - Vertical | degree | 75 |
LCD Controller kit | DF14-20P-1LVDS_800X600+MS542EXT-6BIT | |
LED Backlight kit | SB44255X11R7+MS640EXT |
