RDP-150-LCD is a direct replacement for Furuno RDP-150. RDP-150-LCD has a much better image quality and is much brighter than old RDP-150. Wider viewing angle and faster response time then old RDP-150. It has upgraded our Sunlight Readable LED Kit and RDP-150-LCD will last 10X longer than CCFL lamps.
It is easy to Install! Anyone can do it! Connect +12V or 24V DC to Red wire and connect negative (GND) to Black wire! 1 year warranty!.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from main board
Disconnect Screen wire harness on RDP-150
Remove old RDP-150
Mount RDP-150-LCD back to the same location
Connect Screen wire harness to RDP-150-LCD
Connect +12V or 24V DC to Red wire and connect negative (GND) to Black wire
RDP-150-LCD has the same interface connector, dimension and screw hole as the old RDP-150.
RDP-150-LCD included the following items:

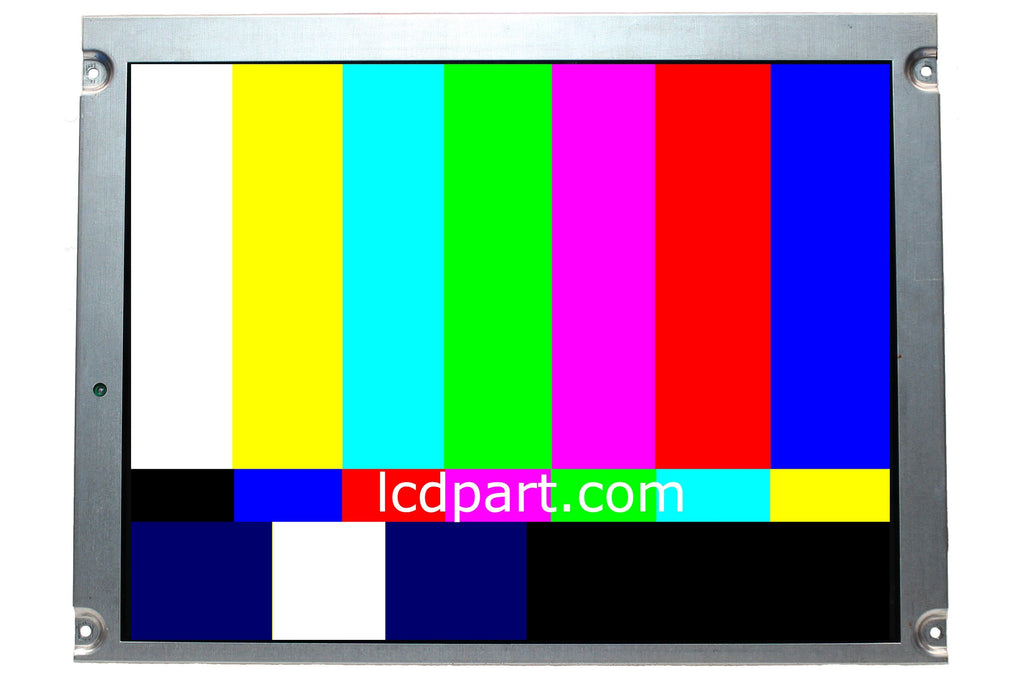

1) LCD screen ( it has upgraded to our Sunlight Readable LED kit)
1) MS610UB LED driver
1) Six pin pigtails connector
