TCG057QV1AC-G10


Price:
$179.99

Description

New Kyocera TCG057QV1AC-G10 (Alias 3205278-000). 90 days warranty.

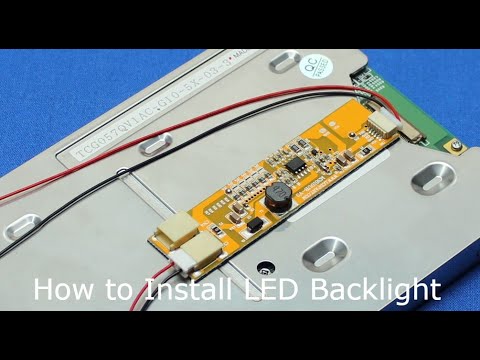

Kyocera TCG057QV1AC-G10, one of the most popular LCD panels in a medical industrial application. This 5.7 inch Kyocera TCG057QV1AC-G10 is originally equipped with one U shape CCFL back light lamp. To extend its life and improve its performance, upgrading it to our TCG057QV1AC-G10-LEDKIT LED kit is the best option(LED Upgrade kit for Kyocera TCG057QV1AC-G10 is Listed below). As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 5.7
Native Resolution 320 X 240
Active Area [mm] 117.2(H) X 88.4(V)
Outline dimension [mm] 144.0(W) X 104.8(H) x 13.0(D)
Bolt Hole Dimension [mm] 96.4 X 96.4
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness TTL-FFC05-2829-33
Electrical Interface Dot Matrix
White Luminance [cd/m2] 400
Contrast Ratio 450
BackLight Connector BHR-03VS-1X1
Backlight Inverter Substitute MS397DI
Response time, Rising msec 10
Response time, Falling msec 25
Viewing Angle - Horizontal degree 70
Viewing Angle - Vertical degree 70
LED Backlight kit TCG057QV1AC-G10-LEDKIT
