TM121SDS01 12.1 inch LCD Screen


Price:
$219.99

Description

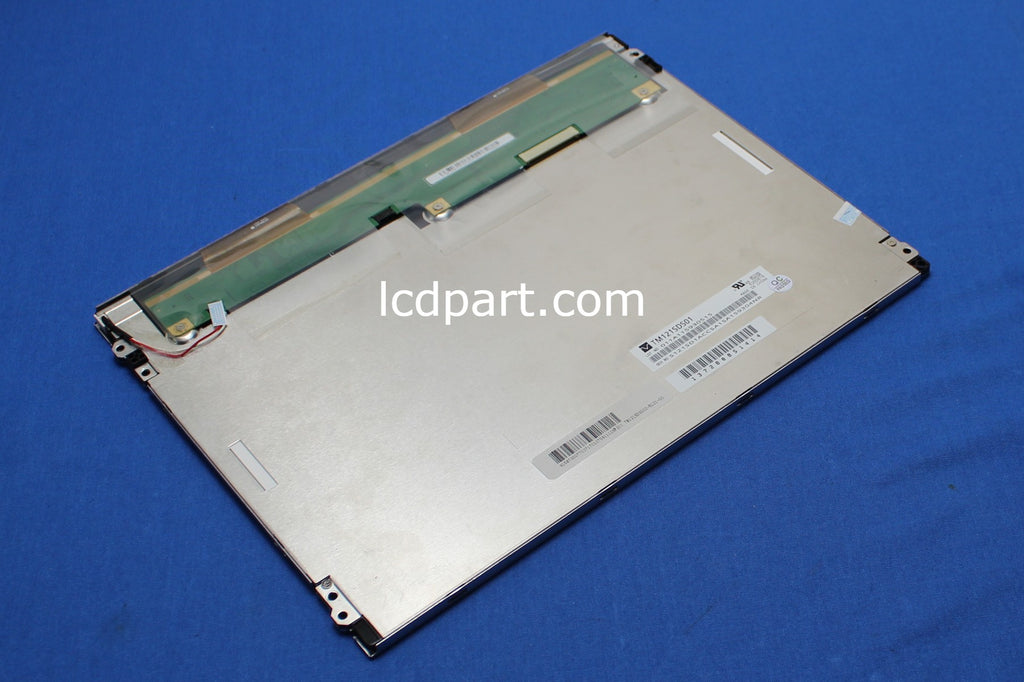

Refurbished 12.1 inch TM121SDS01 LCD screen. 90 days warranty.
TM121SDS01, one of the most popular LCD screens in control industrial and medical applications. This 12.1 inch TM121SDS01 is originally equipped with its manufacturer's LED back light strip with built-in LED driver, which has typically 450 nits (based on its datasheet). By upgrading to our SB44255X11R7+MS640EXT LED kit, it can reach 1300 nits or higher.
MS640EXT wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it!
General Specifications:
Item Unit Specifications
Screen Size [inch] 12.1
Native Resolution 800 X 600
Active Area [mm] 246.0(H) X 184.5(V)
Outline dimension [mm] 279.0(W) X 209.0(H) X 9.0(D)
Bolt Hole Dimension [mm] 166 (138) X 176 (185.8)
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS (6BO/8BH) P4
White Luminance [cd/m2] 450
Contrast Ratio 700:1
BackLight Connector P24038P5, 1.25mm 5P(MS542EXT)
Backlight Inverter P5=NC, P4=PWM, P3=ENA, P2=GND, P1=12V
Response time, Rising msec 2
Response time, Falling msec 5
Viewing Angle - Horizontal degree 80
Viewing Angle - Vertical degree 75
LCD Controller kit DF14-20P-1LVDS_800X600+MS542EXT-6BIT
LED Backlight kit SB44255X11R7+MS640EXT
