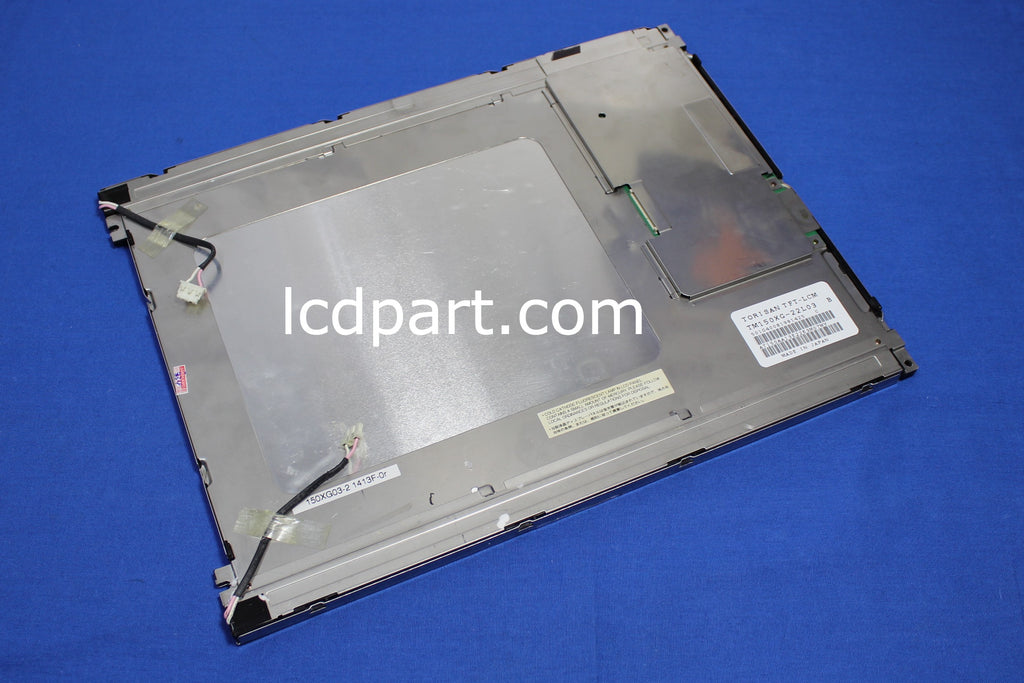

TM150XG-22L03, 15 inch Sharp LCD screen


Price:
$219.99

Description

Note: Please double check your screen wire connector before placing an order. Some of older version has TTL interface, which use 45 pin and 30 pin ribbon cable, if so. Our TM150XG-22L03 is not compatible
Note: Please double check your screen wire connector before placing an order. Some of older version has TTL interface, which use 45 pin and 30 pin ribbon cable, if so. Our TM150XG-22L03 is not compatible
TORISAN TM150XG-22L03, one of the most popular LCD panels in an industrial application. This 15 inch TORISAN TM150XG-22L03 is originally equipped with dual CCFL backlight lamps. To extend its life and improve its performance, upgrading it to our UB54318LED8020X2 LED kit is the best option. As they are a solid state semiconductor device, LED has a longer lifespan, typically lasting over 100,000 hours.
Six pin pigtail connector is included. It is easy to Install! Anyone can do it!
LED upgrade kit for TORISAN TM150XG-22L03 is Listed below
General Specifications:
Item Unit Specifications (BOX28)
Screen Size [inch] 15
Native Resolution 1024 X 768
Active Area [mm] 304.1(H) X 228.1(V)
Outline dimension [mm] 341.0(W) X 262.0(H) X 13.8(D)
Bolt Hole Dimension [mm] 210 X 253
Input Voltage VDD [Volt] 3.3V
Screen Wire Harness DF14-20P-1LVDS
Electrical Interface LVDS(8-bit)
White Luminance [cd/m2] 250
Contrast Ratio 250:1
BackLight Connector BHR-03VS-1X2
Backlight Inverter Substitute MS179DI
Response time, Rising msec tr+tf=50
Response time, Falling msec N/A
Viewing Angle - Horizontal degree N/A
Viewing Angle - Vertical degree N/A
Compatible with N/A
LCD controller kit DF14-20P-1LVDS_1024X768-8Bit
LED Backlight kit UB54318LED8020X2
