TTL-640X480, For testing older LCD that has 640X480 resolution

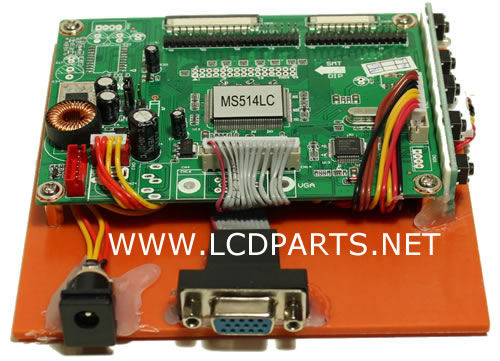

TTL-640X480 is designed for testing older LCD Screens. This LCD kit is for testing smaller industrial LCD screens (6.5” to 12.1”) that had TTL interface, which means that you cannot use LST04 to test them. This kit included 2 inverters (MS495DI, MS179DI, MS336EXT & MS529EXT) and 3 most common screen wire harness (TTL-DF9-31-2829) that allows you to test LCD screen that has 640X480 resolutions, Such as NEC, Sharp, Toshiba and Torisan.
Note: 12V DC (3A) AC-DC Adapter is not included. DC Jack : 5.5mmX2.1mm (most common type)
TTL-640X480 can test the following make and model listed below and many more older LCD screens:
Manufacture Size LCD Screen
AUO 10.4" G104VN01-V0
AUO 10.4" G104VN01-V1*
Hitachi 10.4" TX26D02VM1CAA
KYOCERA 6.5 T-51750GD065J-LW-AQN
LG Philips 10.4 LP104V2
Mitsubishi 8.4 AA084VF01
Mitsubishi 10.4 AA104VH02
NEC 6.5 NL6448AC20-06
NEC 6.5 NL6448BC20-08
NEC 6.5 NL6448BC20-08E
NEC 6.5 NL6448BC20-14
NEC 6.5 NL6448BC20-18D
NEC 6.5 NL6448BC20-20
NEC 8.4 NL6448BC26-01
NEC 8.4 NL6448BC26-09
NEC 10.2 NL6448AC32-01
NEC 10.4 NL6448AC33-18
NEC 10.4 NL6448AC33-24
NEC 10.4 NL6448AC33-27
NEC 10.4 NL6448AC33-29
NEC 10.4 NL6448BC33-31
NEC 10.4 NL6448BC33-44
NEC 10.4 NL6448BC33-46
NEC 10.4 NL6448BC33-46D
NEC 10.4 NL6448BC33-50E
NEC 10.4 NL6448BC33-53
NEC 10.4 NL6448BC33-54
NEC 10.4 NL6448BC33-59
NEC 10.4 NL6448BC33-64
NEC 10.4 NL6448BC33-70
NEC 10.4 NL6448BC33-70C
NEC 10.4 NL6448BC33-70D
NEC 10.4 NL6448BC33-70F
NEC 10.4 NL6448BC33-74
NEC 10.4 NL8060AC26-11
Optrex 10.4 T-51513D104U-FW-A-AB
Prime View 6.4 PD064VT4
Prime View 6.4 PD064VT5
Sanyo 10.4 NRL75-8809A-114
Sharp 6.4 LQ064V3DG01
Sharp 6.4 LQ064V3DG02
Sharp 6.4 LQ064V3DG05
Sharp 6.4 LQ64D343
Sharp 8.4 LQ084V1DG21
Sharp 8.4 LQ084V1DG22
Sharp 8.4 LQ084V1DG41
Sharp 8.4 LQ9D169
Sharp 10.4 LQ104V1DC31
Sharp 10.4 LQ104V1DC41
Sharp 10.4 LQ104V1DG11
