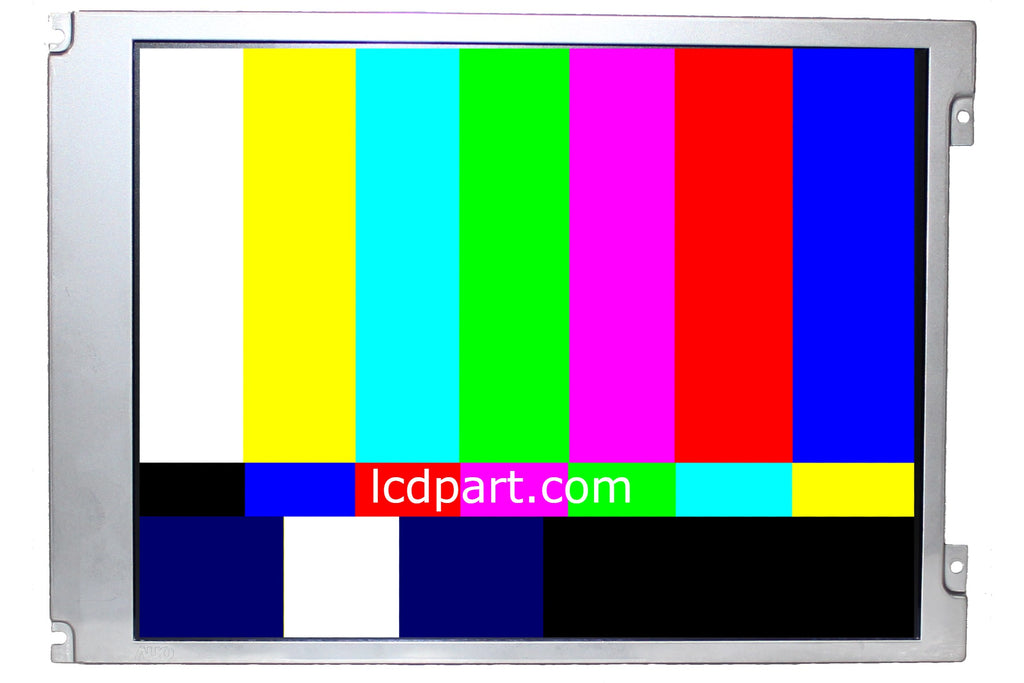

UB084S01 Direct Replacement LCD, P/N: UB084S01-LCD



UB084S01-LCD is a direct replacement for the 8.4" Unipac LCD Screens. UB084S01-LCD has a much better image quality and it is much brighter than old Sharp LCD screens. Wider viewing angle and faster response time then old Sharp LCD screens. It has upgraded our Sunlight Readable LED Kit and UB084S01-LCD will last 10X longer than CCFL lamps. It is easy to install! Anyone can do it! 1 year warranty!
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from inverter board
Disconnect Screen wire harness on UB084S01 LCD Screen
Remove old LCD Screen and mount UB084S01-LCD back to the same location
Connect Screen wire harness to UB084S01-LCD
Remove old CCFL Inverter and Mount MS610UB back to the same location
Connect Ground (GND) to Black wire
UB084S01-LCD has the same interface connector, dimension and screw hole as the LCD screens that are listed below.
UB084S01-LCD included the following items:
8.4 inch LCD screen ( it has upgraded to Sunlight Readable LED kit)
MS610UB LED driver
6 pin pigtail connector with Red and Black wire
