XP70-TTA/AC-LCD is a direct replacement for XP70-TTA/AC (Alias LSS-XP70TTA-01(A)). A02B-0299-C060-LCD has a much better image quality and is much brighter than old XP70-TTA/AC. Wider viewing angle and faster response time then old XP70-TTA/AC. XP70-TTA/AC-LCD has upgraded our Sunlight Readable LED Kit and XP70-TTA/AC-LCD will last 10X longer than CCFL lamps.
A wire connector is included. No technical skills required! Soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes:
Disconnect CCFL lamps wire harness from main board
Disconnect Screen wire harness on XP70-TTA/AC
Remove old XP70-TTA/AC
Mount XP70-TTA/AC-LCD back to the same location
Connect Screen wire harness to XP70-TTA/AC-LCD

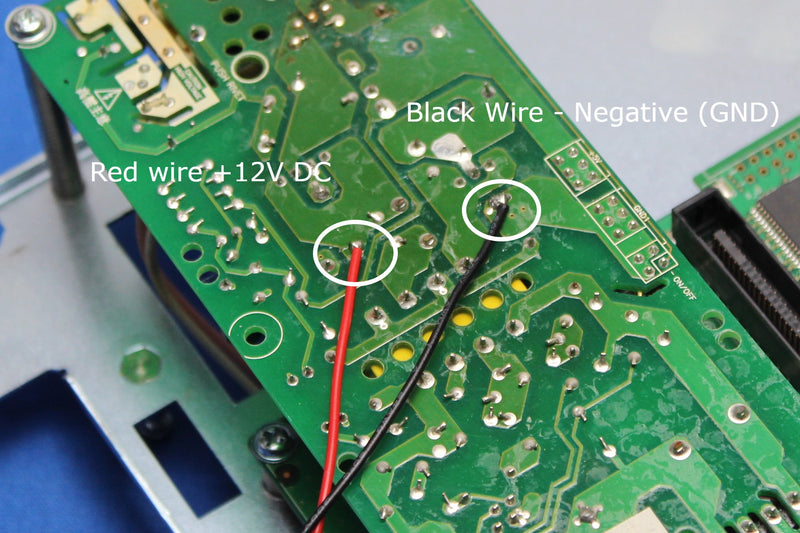

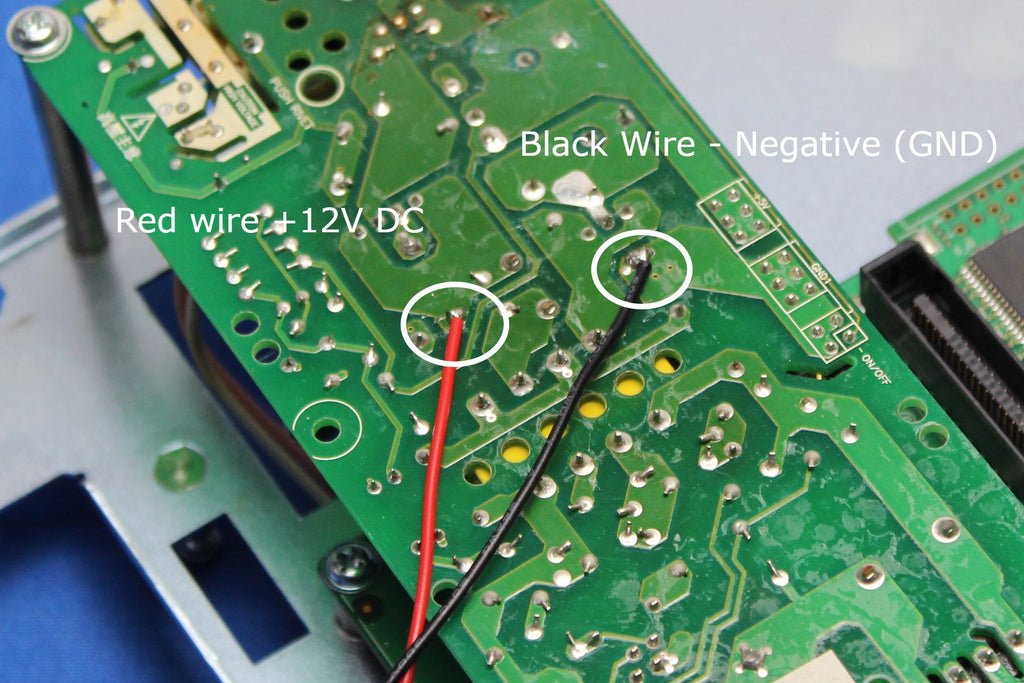

Solder Red wire to +12V DC and Black wire to Ground as shown photos below
A02B-0299-C060-LCD has the same interface connector, dimension and screw hole as the old XP70-TTA/AC.
XP70-TTA/AC-LCD included the following items:

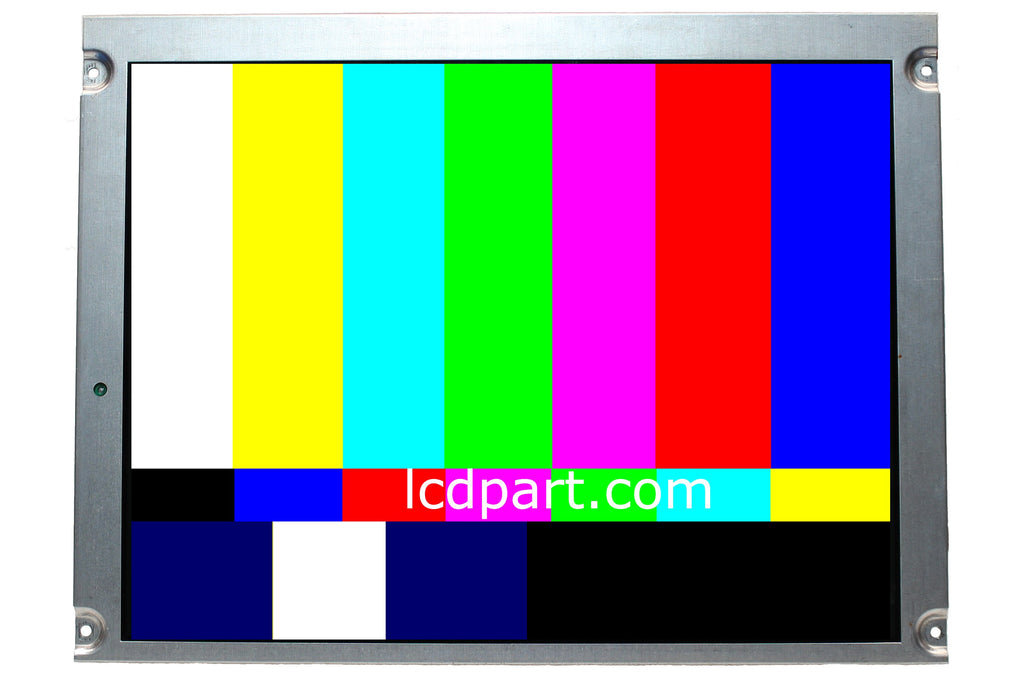

1) A LCD screen ( it has upgraded to Sunlight Readable LED kit)

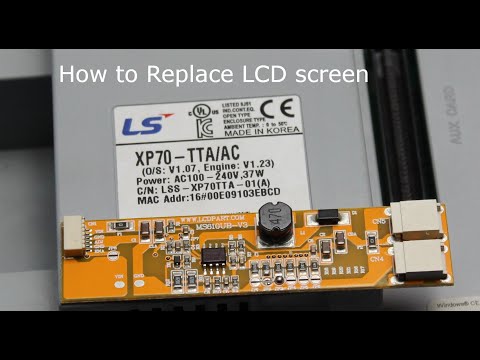

1) MS610UB LED driver
1) A wire connector
