2711P-RDK12C-LCD is a direct replacement for Allen Bradley 2711P-RDK12C PanelView Plus 1250. 2711P-RDK12C-LCD has a much better image quality and is much brighter than old 2711P-RDK12C. Wider viewing angle and faster response time then old 2711P-RDK12C. 2711P-RDK12C-LCD has upgraded our 2711P-RDK12C-LEDKIT and 2711P-RDK12C-LCD will last 10X longer than CCFL lamps.
A wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from logic board
Disconnect Screen wire harness on on logic board
Remove old 2711P-RDK12C LCD screen
Mount 2711P-RDK12C-LCD back to the same location
Connect Screen wire harness to 2711P-RDK12C

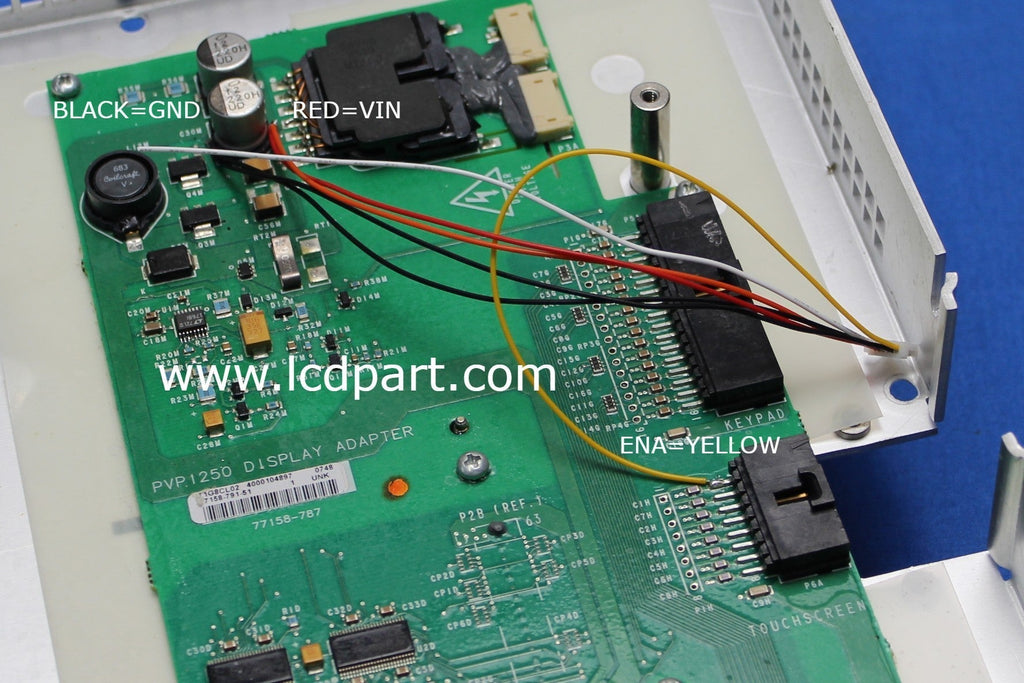

Connect Red and Black wires to a can capacitor as shown photo. Connect ENA to C1H
2711P-RDK12C-LCD has the same interface connector, dimension and screw hole as the old 2711P-RDK12C.
2711P-RDK12CK-LCD included the following items:
1) LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS610UB LED driver
1) A wire connector
