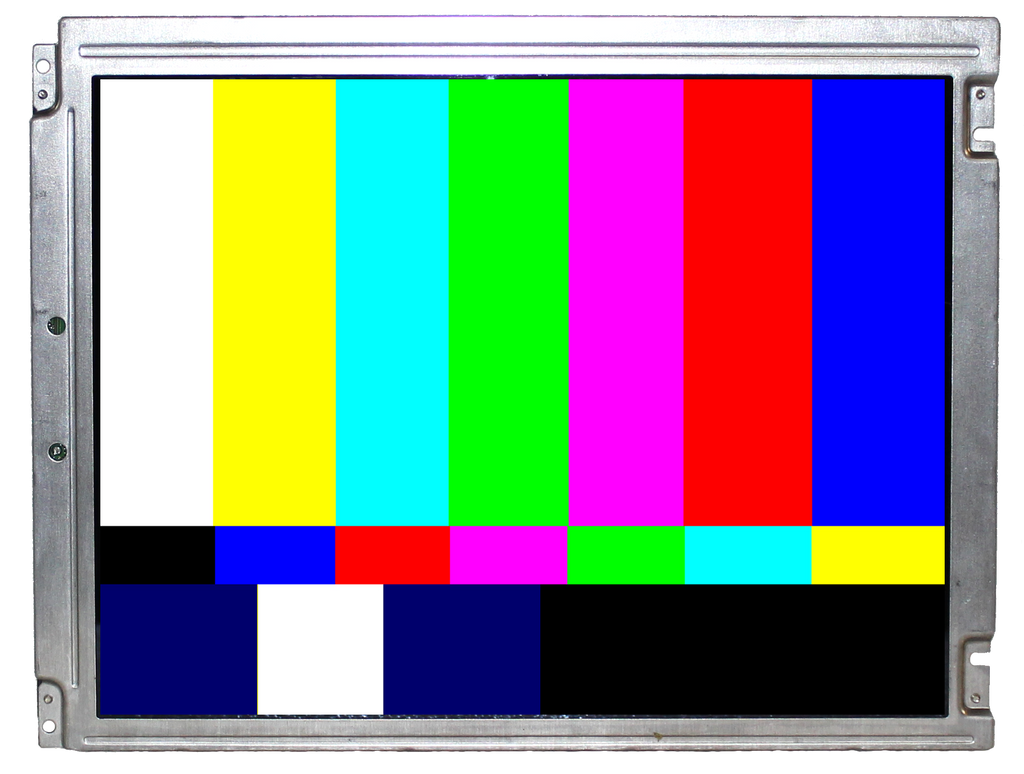

2711-T10C10-LCD is a direct replacement for Allen Bradley 2711-T10C10. 2711-T10C10-LCD has a much better image quality and is much brighter than old 2711-T10C10. Wider viewing angle and faster response time then old 2711-T10C10. 2711-T10C10-LCD has upgraded our Sunlight 2711-T10C10-LEDKIT and 2711-T10C10-LCD will last 10X longer than CCFL lamps.
A wire adapter is included. No technical skills required! No soldering required! It is easy to Install! Anyone can do it! 1 year warranty.
Installation takes about 15 minutes.
Disconnect CCFL lamp wire harness from CCFL inverter
Disconnect Screen wire harness on Allen Bradley 2711-T10C10
Remove old 2711-T10C10 LCD screen
Mount 2711-T10C10-LCD back to the same location
Connect Screen wire harness to 2711-T10C10-LCD

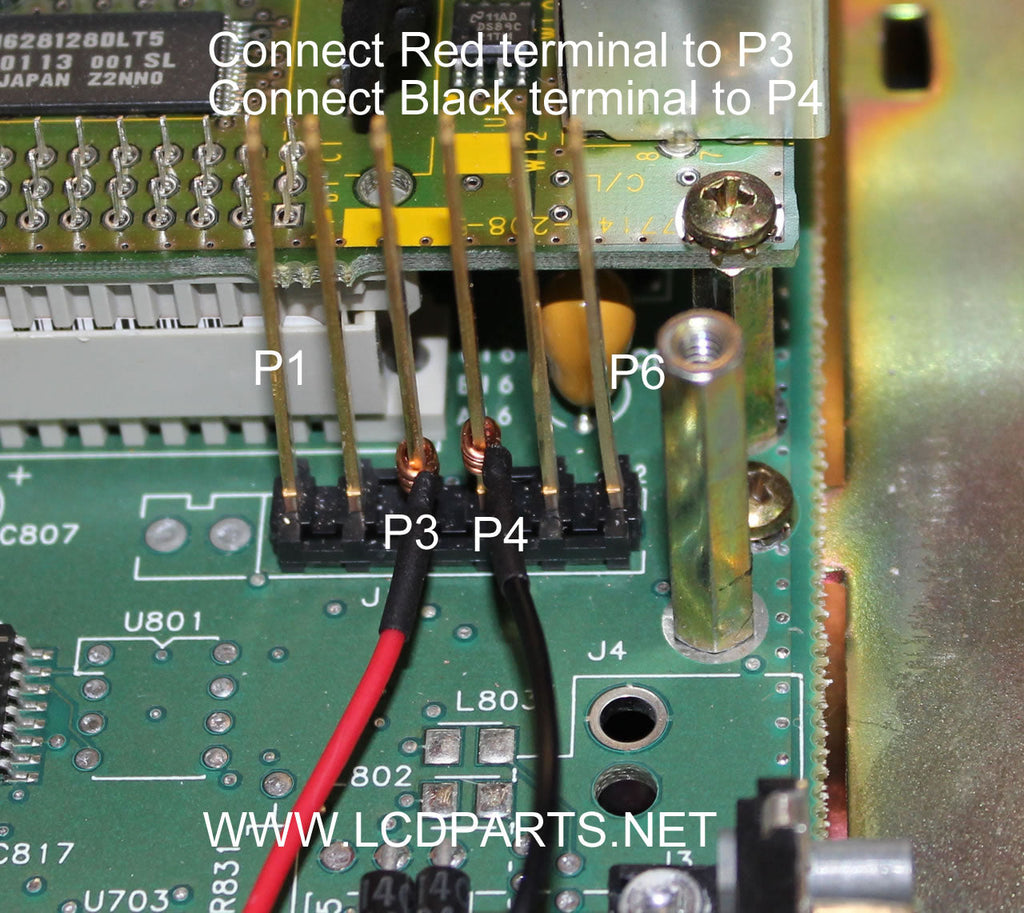

Connect Red wire to Pin 3 and Black wire to pin 4 on power supply board's socket
2711-T10C10-LCD has the same interface connector, dimension and screw hole as the old Allen Bradley 2711-T10C10.
2711-T10C10-LCD included the following items:
1) LCD screen ( it has upgraded to Sunlight Readable LED kit)
1) MS610UB LED driver
1) A wire adapter
